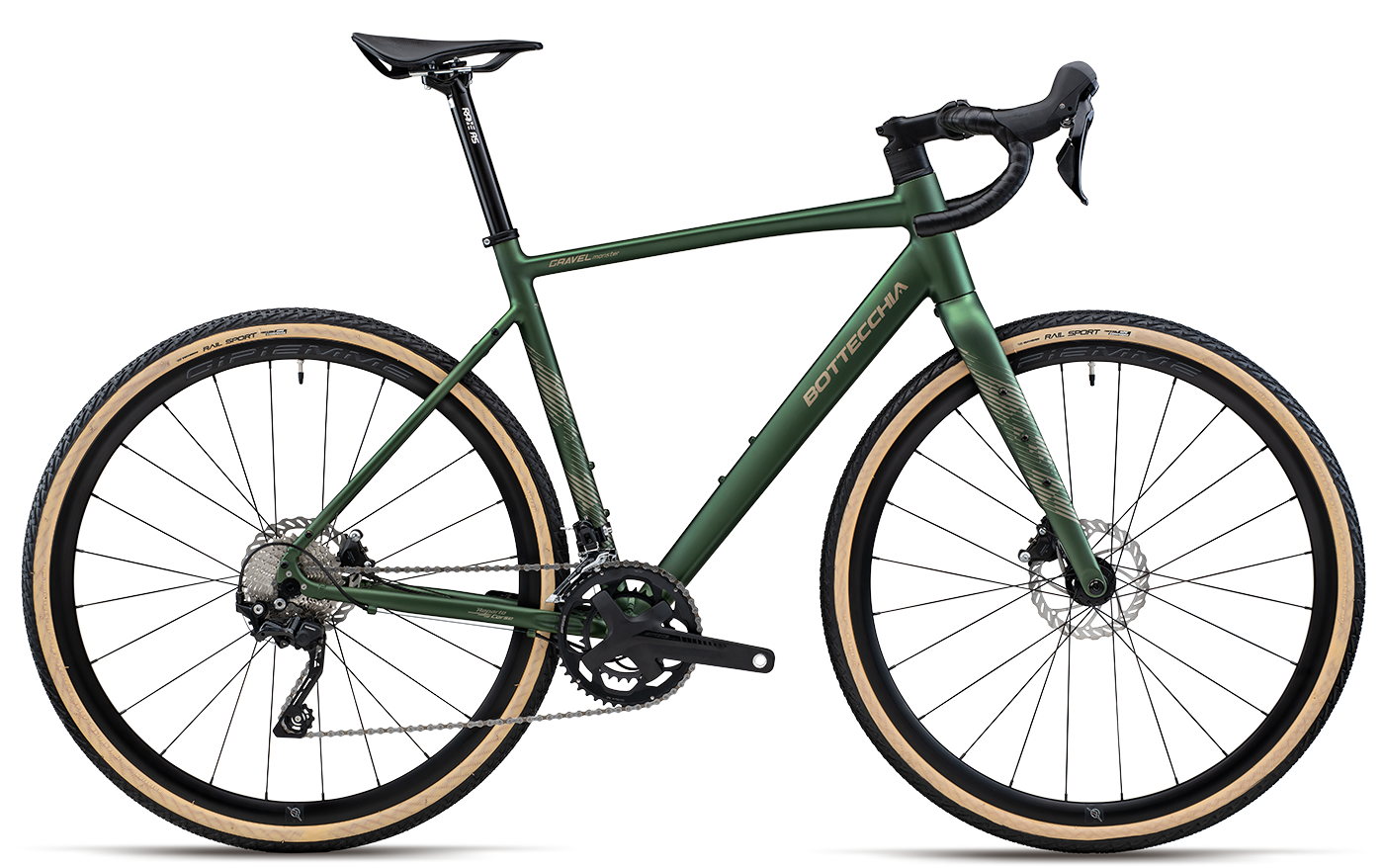

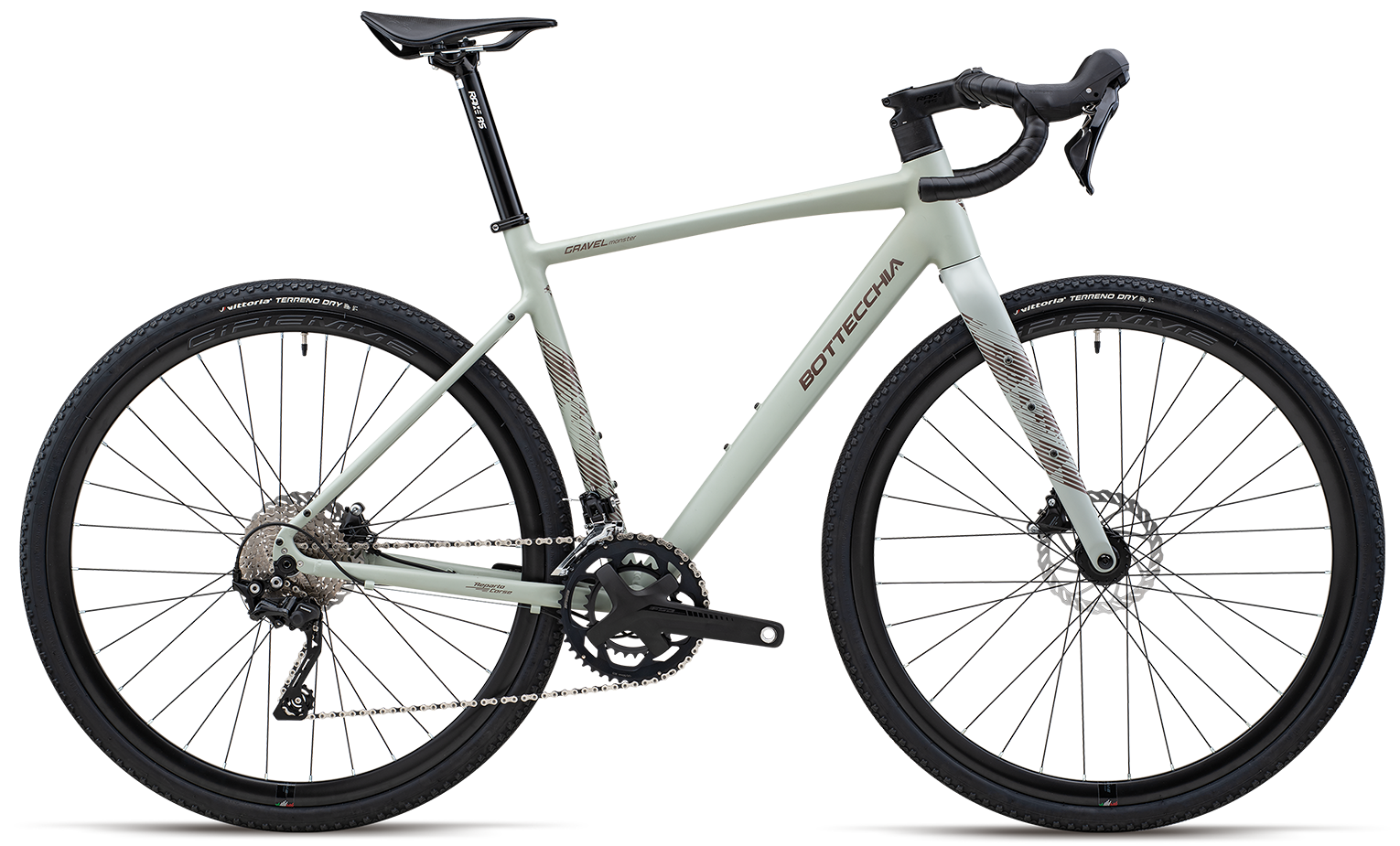

GRAVEL MONSTER

REPARTO CORSE

Your new adventure bike

GRAVEL MONSTER is the fast bike on asphalt, but not afraid of dirt roads. Ready for adventure, it's ideal for excursions, bike packing and nature trips.

GRAVEL MONSTER

Name: GRAVEL MONSTER
Brand: BOTTECCHIA

€0,00

GRAVEL MONSTER

Sold Out

€0,00

Select Color

C48 GRIGIO OPACO

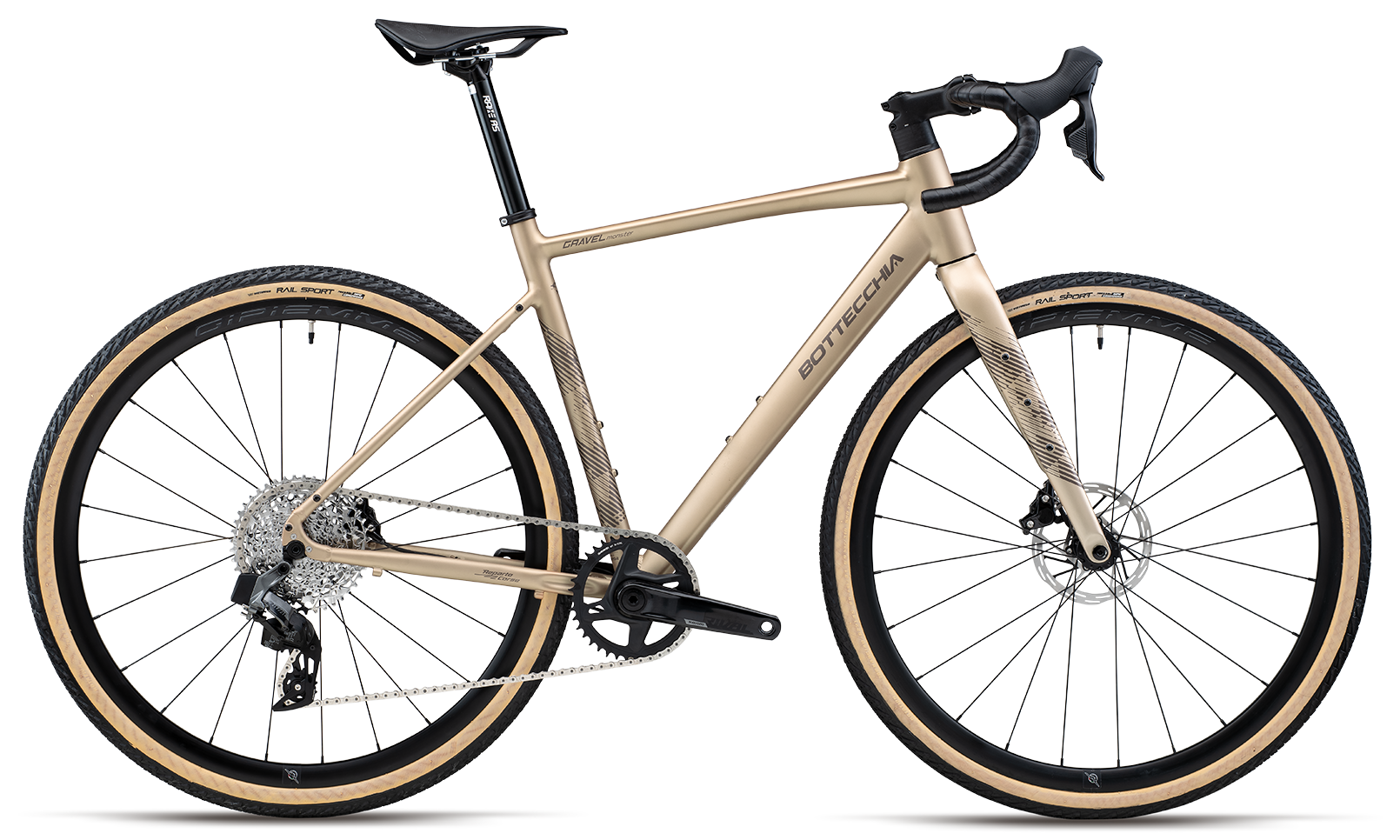

B4 MATT SAND

C46 MATT GREEN

FRAME
Gravel Alu 6061 double butted, disc brakes, thru axle. Carbon finish
look. Integrated cable routing, bike packing ready. Wheel clearance up to 50mm.

BB
BSA 68mm.

HEADSET
Integrated 1” 1/2 above and 1” 1/2 below Integrated cable routing.

FORK
Carbon monocoque with 1”1/2 tapered steerer, weight 510g. 12mm thru axle, integrated brake hose routing, bike packing ready.

WEIGHT
Size M 1460g

Equipments and prices

47BX GRAVEL MONSTER Shimano GRX610 24s € 1.999,00
47BE GRAVEL MONSTER Shimano GRX610 12s € 1.899,00
47BR GRAVEL MONSTER Shimano GRX400 Mix 20s € 1.599,00
47RP GRAVEL MONSTER Sram Rival AXS XPLR 13s € 2.799,00
47EK GRAVEL MONSTER Campagnolo Ekar GT 13s € 2.099,00
47U GRAVEL MONSTER Shimano Sora Mix 18s € 1.299,00

Suggested retail prices valid for the European market, excluding transport.

Sizes

44 - 48 - 51 - 54 - 56 - 58

OVERVIEW OF EQUIPMENT

GEOMETRIES

SIZE GUIDE

GO TO THE GUIDE

What is your size?

Consult our SIZE GUIDE to get an indication of the frame size that best suits you. Remember that a biomechanical evaluation with your local authorized dealer is always recommended.

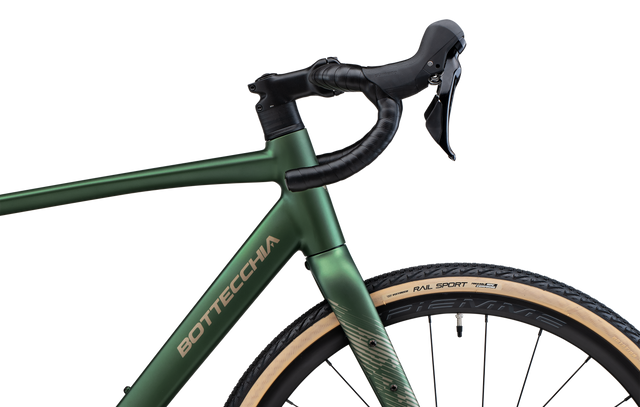

NEW INTEGRATED HEADTUBE

The new 1" and 1/2 integrated headset makes the frame more rigid and allows internal cable routing for better rideability.

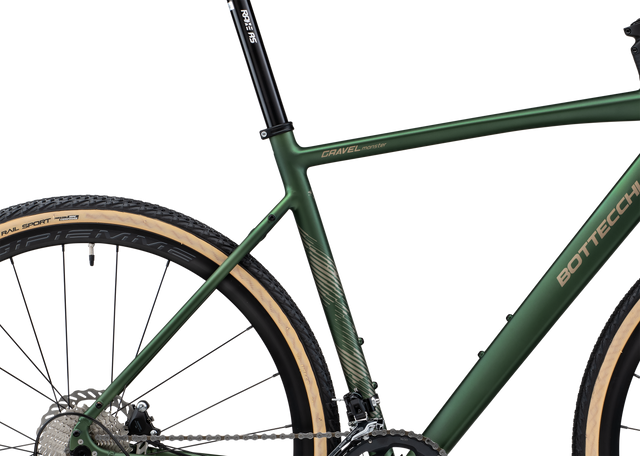

CARBON FINISH LOOK

The smooth welding on the entire frame gives a carbon finish look with a strong aesthetic impact.

REPARTO CORSE TECHNOLOGIES

Double butted 6061 aluminum for Gravel Monster, the perfect bike for having fun on different trails. New frame with integrated 1.5" headset that makes the bike more rigid and allows for internal cable routing. Monocoque carbon fork with 1” ½ tapered steerer weighing 510g that absorbs vibrations, and front and rear thru axles that give the frame greater rigidity. Smooth Welding frame joints that make the finishes similar to carbon. Available with both Sram Apex and Shimano GRX400 and GRX600 groupsets at 20 and 22 speeds with optimized ratios.

IDEAL FOR

Designed to tackle any terrain in any season, without worrying about distances. Thanks to the superior quality components it guarantees excellent performance both in group rides and in races.

PERFECT FOR YOU IF

If you are looking for a reliable aluminum gravel bike with excellent handling capable of tackling rough roads with great riding comfort even on long journeys.

SCOPRI I RIVENDITORI

Concept & Design:
Meneghini & Associati - Talent Union

Group	Shimano GRX610 24s DISK	Shifter	Shimano RX610 24s
Rear Derailleur	Shimano RX610 24s DISK	Chainwheel	Shimano RX610 30/46
Wheels	GPM 825/5 alu TLR 30/23 axle12	Cassette	Shimano GRX 11/36 12s
Brakes	Shimano RX400 DISK 160/160	Tires	Vittoria Terreno T 700x40
Handlebar	Deda Superzero Flat Gravel DCR	Stem	Gravel Alu DCR Frameset
Seatpost	Raxe Alu 31,6	Saddle	Selle ITALIA X Model
Pedals	NO

Group	Shimano GRX610 12s DISK	Shifter	Shimano RX610 12s
Rear Derailleur	Shimano RX610 12s DISK	Chainwheel	Shimano RX610 1/46
Wheels	GPM 825/5 alu TLR 30/23 axle12	Cassette	Shimano GRX 10/51 12s
Brakes	Shimano RX400 DISK 160/160	Tires	Vittoria Terreno T 700x40
Handlebar	Deda Superzero Flat Gravel DCR	Stem	Gravel Alu DCR Frameset
Seatpost	Raxe Alu 27,2	Saddle	Selle ITALIA X Model
Pedals	NO

Group	Shimano GRX400 Mix 20s DISK	Shifter	Shimano RX400 20s
Rear Derailleur	Shimano RX400 20s DISK	Chainwheel	FSA Omega Megaexo Alu 30/46
Wheels	GPM 825/5 alu TLR 30/23 axle12	Cassette	Shimano GRX 11/34 10s
Brakes	Shimano RX400 DISK 160/160	Tires	Vittoria Terreno T 700x40
Handlebar	Deda Superzero Flat Gravel DCR	Stem	Gravel Alu DCR Frameset
Seatpost	Alu Frame 31.6	Saddle	Selle ITALIA X Model
Pedals	NO

Group	Sram RIVAL AXS XPLR 13s DISK	Shifter	Sram RIVAL AXS XPLR 13s DISK
Rear Derailleur	Sram RIVAL AXS XPLR 13s DISK	Chainwheel	Sram RIVAL AXS XPLR 1x42
Wheels	GPM 825/5 alu TLR 30/23 axle12	Cassette	Sram RIVAL AXS XPLR 10/46 13s
Brakes	Sram RIVAL AXS XPLR 160/160	Tires	Vittoria Terreno T 700x40
Handlebar	Deda Superzero Flat Gravel DCR	Stem	Gravel Alu DCR
Seatpost	Raxe Alu 31,6	Saddle	SELLE ITALIA X Model
Pedals	NO

Group	Campagnolo EKAR GT 13s	Shifter	Campagnolo EKAR GT 13s
Rear Derailleur	Campagnolo EKAR GT 13s	Chainwheel	Campagnolo EKAR GT 1x40
Wheels	Fulcrum Rapid Red 500	Cassette	Campagnolo EKAR GT 10/48 13s
Brakes	Campagnolo EKAR GT	Tires	Vittoria Terreno T 700x40
Handlebar	Deda Superzero flat Gravel DCR	Stem	Raxe Gravel Alu DCR
Seatpost	Raxe Alu 31,6	Saddle	SELLE ITALIA X Model
Pedals	NO

GRAVEL MONSTER

Your new adventure bike

GRAVEL MONSTER

Suggested retail prices valid for the European market, excluding transport.

SIZE GUIDE

What is your size?

NEW INTEGRATED HEADTUBE

CARBON FINISH LOOK

REPARTO CORSE TECHNOLOGIES

IDEAL FOR

PERFECT FOR YOU IF

Follow your instinct

Bottecchia Cicli srl

Quick links

Follow us

SIZE	TO	B1	C	AND	F	S	STACK	REACH
44	440	505	74.5°	70°	432	110	527	360
48	480	515	74.5°	70.5°	432	120	539	366
51	510	530	74°	71°	432	140	560	370
54	540	550	73.5°	71.5°	432	160	580	377
56	560	560	73,5°	71.5°	432	170	590	385
58	580	580	72.5°	71.5°	432	190	600	400
