WHEELS
ITM
Every bike works as a system, where every part contributes to the final performance. This is why we have developed for you new road and gravel wheels in collaboration with ITM, an Italian brand that combines high technological innovation with a long experience of success.
FUGA and VOLATA, two models created exclusively for Bottecchia, studied and designed to enhance the performance of our bikes.

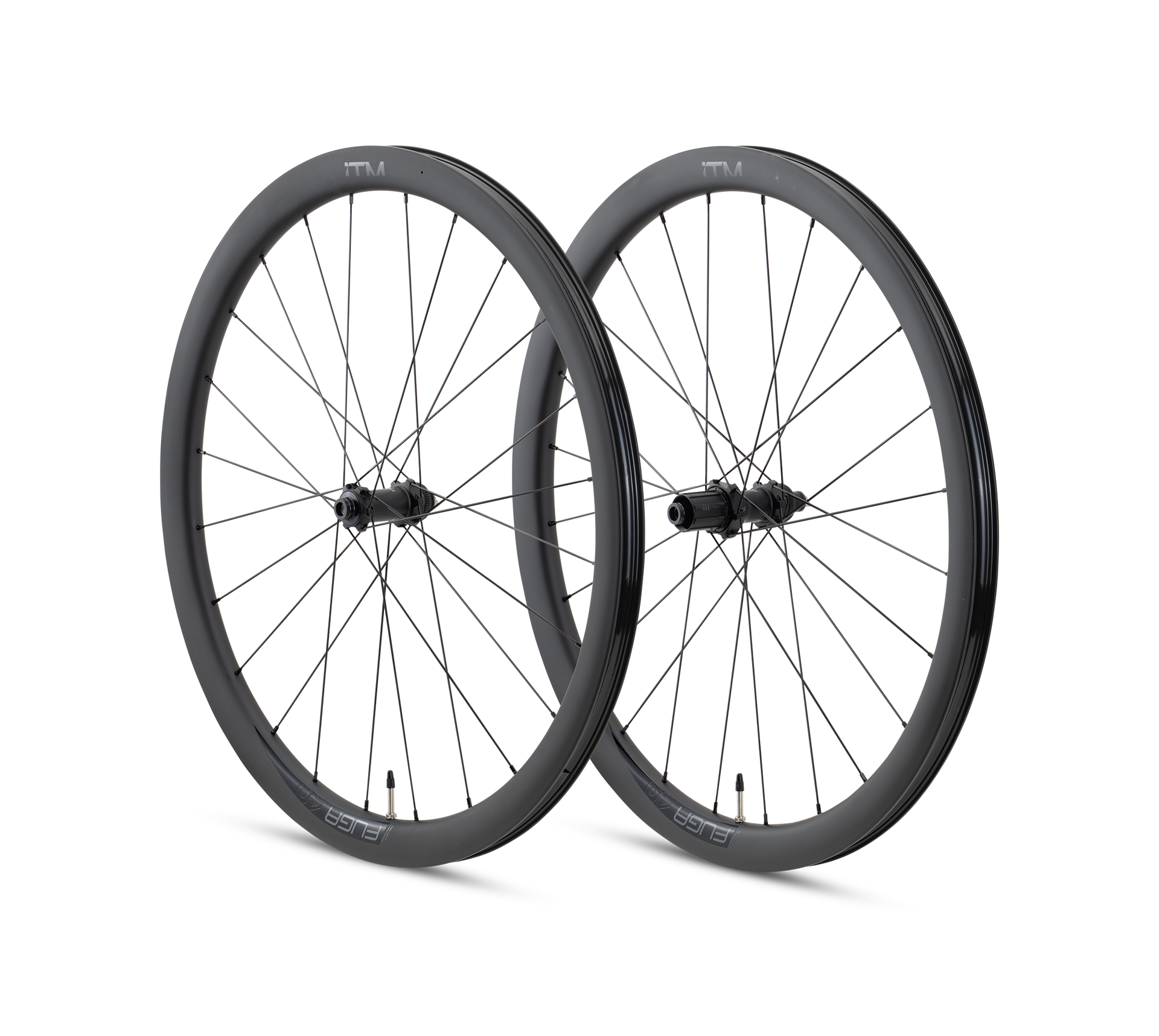

FUGA
FUGA is the wheel that combines the advantages of the best materials to achieve the perfect balance between performance and comfort. The tubeless ready carbon profile with 23 mm internal channel ensures exceptional performance and riding comfort. Versatile and reliable, they guarantee an excellent riding feeling both on asphalt and dirt, thanks to the weight optimized for use on mixed routes. Thanks to the work of the designers, these wheels achieve an excellent combination of lightness, reliability and smoothness, ensuring excellent levels of safety and high riding comfort even over long distances.
Technical data sheet
Rim Carbon fiber, height 40/55 mm, rim width 30 mm, internal channel width 23 mm, tubeless ready.
Diameter 700c.
Pair weight 1560 g 40mm / 1570 g 55mm.
Braking system Disc brake.
Spokes Stainless steel Straightpull aero profile, aluminum nipples.
Cassette Available for HG, MS12, XDR.
Front hub ITM, sealed cartridge bearings, disk brake, 24 holes, 100mm axle spacing, 12mm axle diameter.
Rear hub ITM, sealed cartridge bearings, disk brake, 24 holes, 142mm axle spacing, 12mm axle diameter.
Tires Tube, tubeless. From 25 to 65 mm.

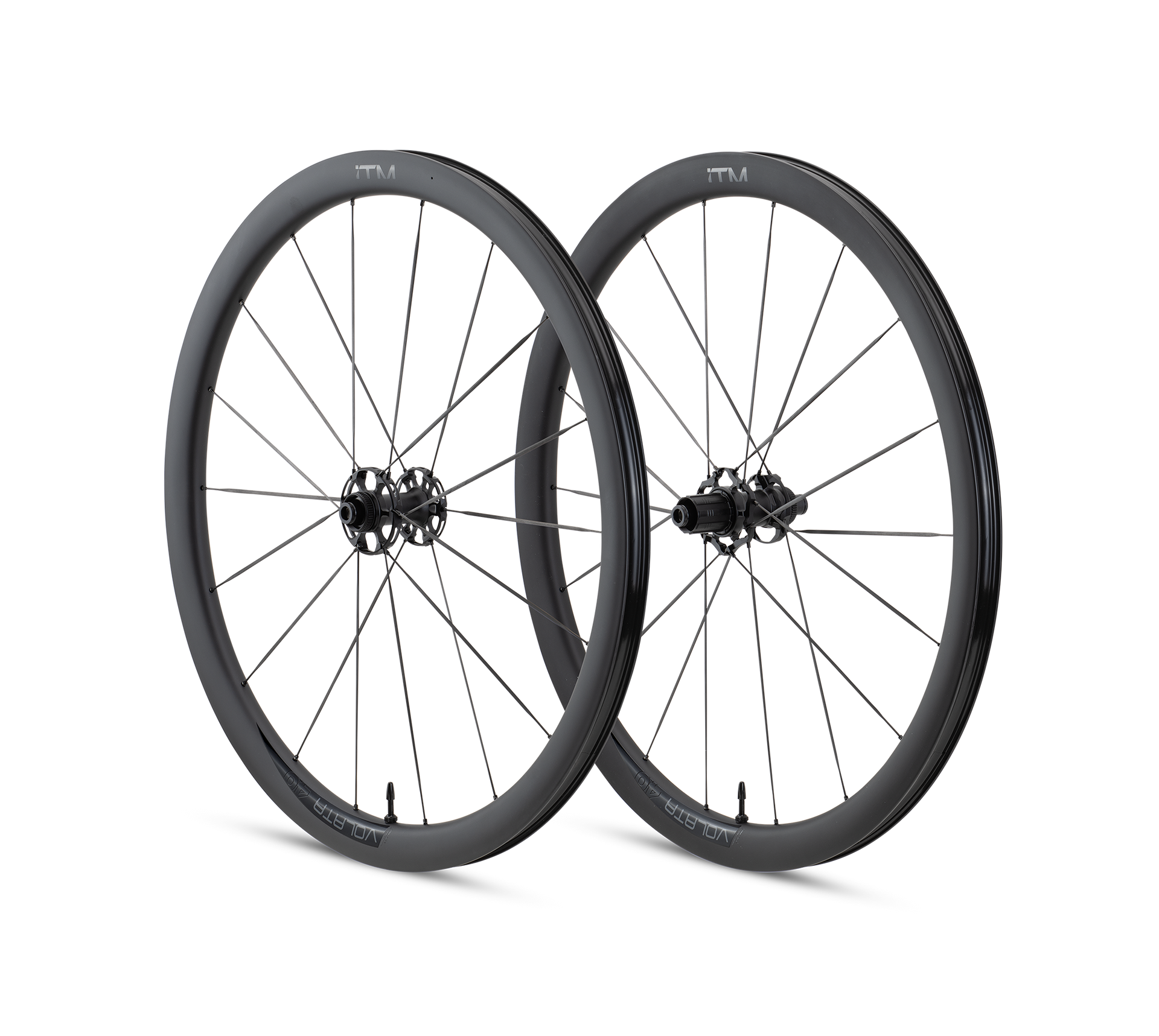

VOLATA
VOLATA is the high-performance wheel, featuring a carbon rim and spokes, designed for high-speed competitions. The rim design has been studied to optimize the air flow around the wheel, significantly reducing aerodynamic resistance and bringing greater energy efficiency, allowing you to maintain high speeds with less effort. Designed for professional road and gravel use, they not only improve acceleration, but also offer greater responsiveness in curves and more precise management, ensuring superior performance on both asphalt and light dirt roads.
Technical data sheet
Rim Carbon fiber, height 40/55 mm, rim width 30 mm, internal channel width 23 mm, tubeless ready.
Diameter 700c.
Pair weight 1360 g 40mm / 1370 g 55mm.
Braking system Disc brake.
Spokes Straightpull carbon spokes with aero profile, aluminium nipples.
Cassette Available for HG, MS12, XDR.
Front hub ITM Ceramic bearings, disk brake, 18 holes, 100 mm axle spacing, 12 mm axle diameter.
Rear hub ITM ceramic bearings, disk brake, 18 holes, 142 mm axle spacing, 12 mm axle diameter.
Cover type Tube, tubeless. From 25 to 65 mm.
