8AVIO ULTIMATE
REPARTO CORSE

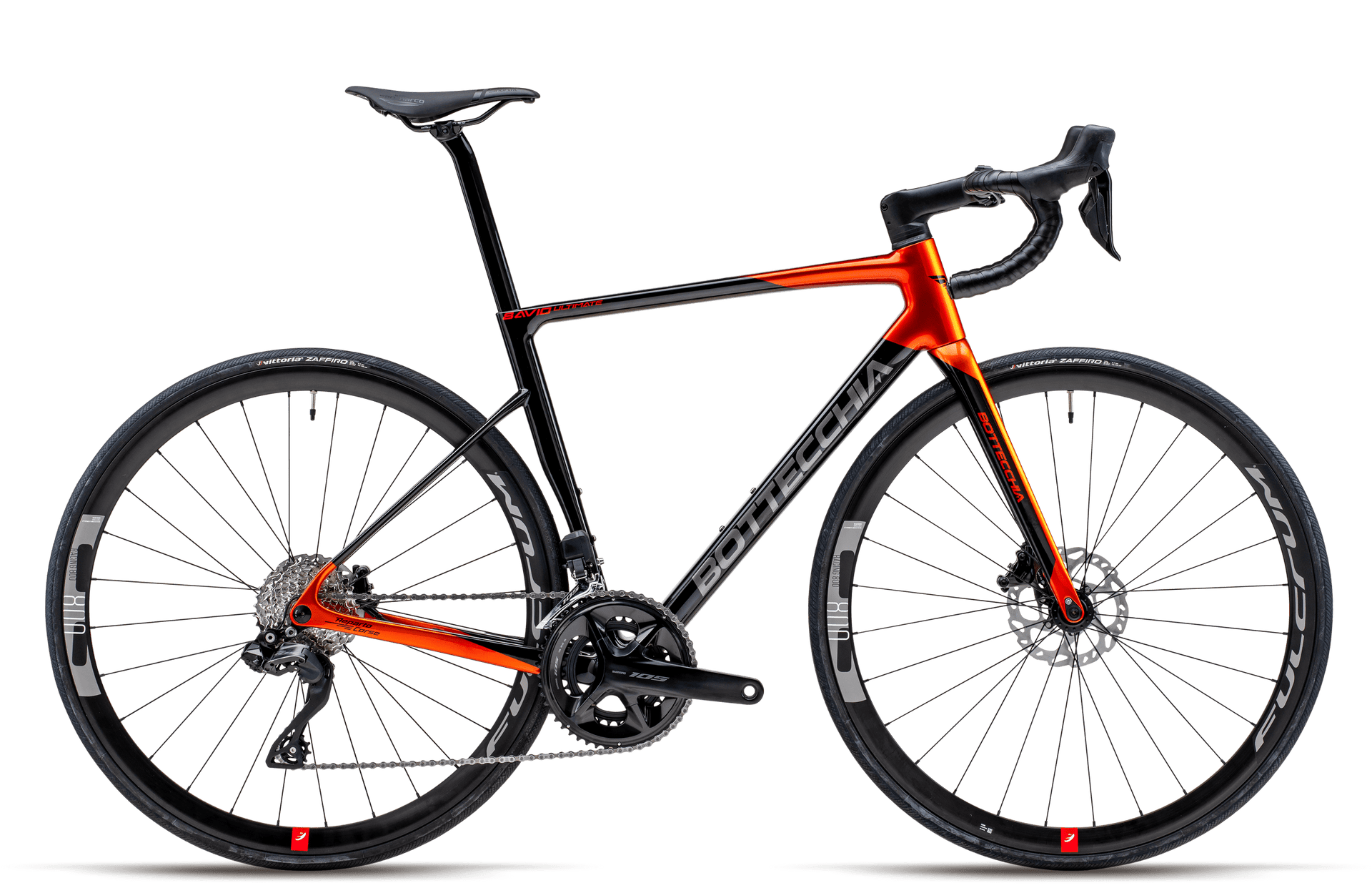

8AVIO ULTIMATE
It was the early 2000s when the "8avio" series was first born: racing bikes for pure road riders with exceptional performance. From this twenty-year tradition comes the new 8AVIO ULTIMATE, the roadbike that condenses the performance and rideability characteristics of the award-winning EMME4 SLI Italian Champion bike and an absolutely competitive price.


8AVIO ULTIMATE

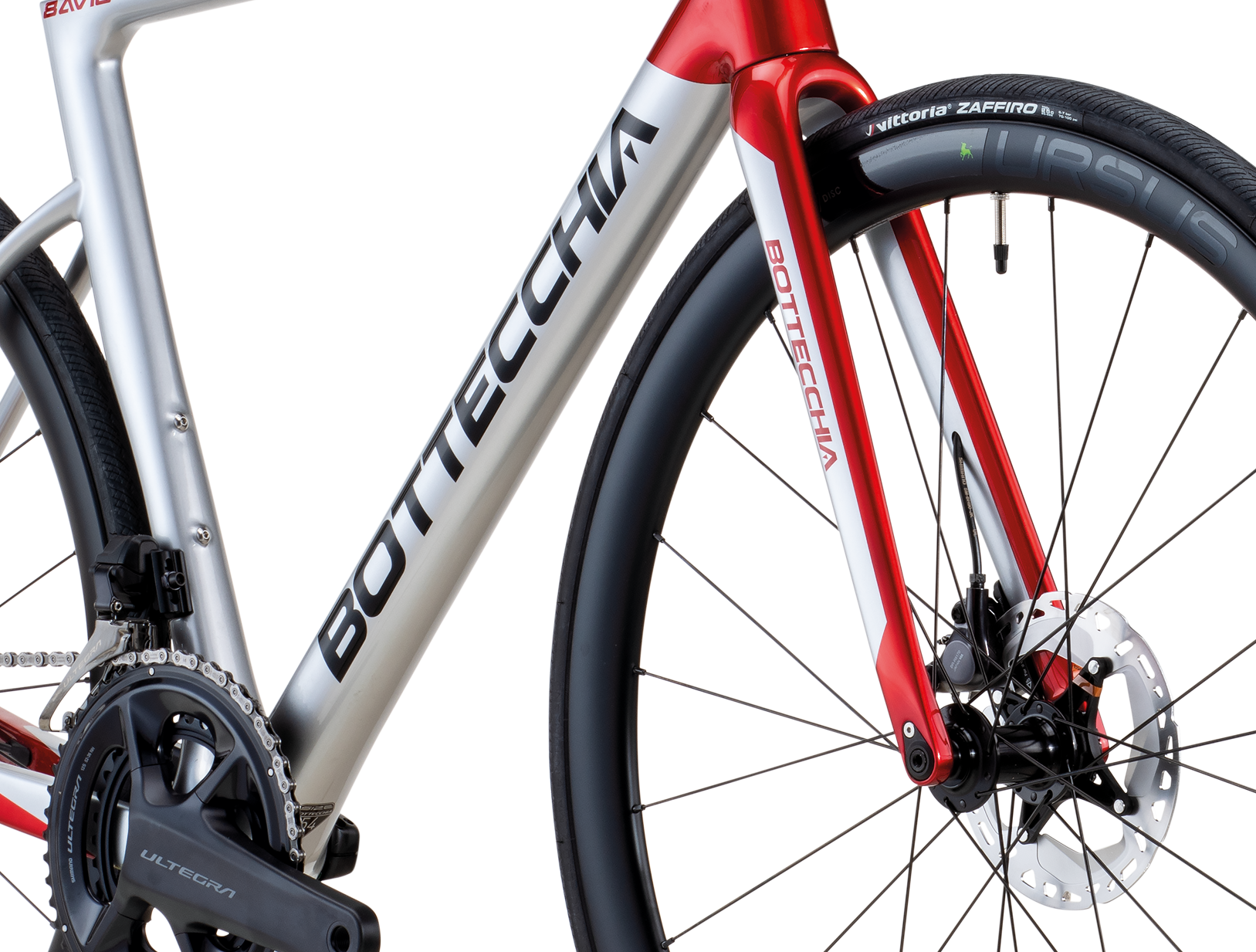

FRAME
UD carbon monocoque, double mold, internal cable routing, suitable for electronic group set disk brake thrue axle, carbon seat post, derailleur hanger UDH, HPG geometry.
BB
PRESSFIT 86mm.
HEADTUBE
Integrated 1” 1/2 up and 1” 1/2 down

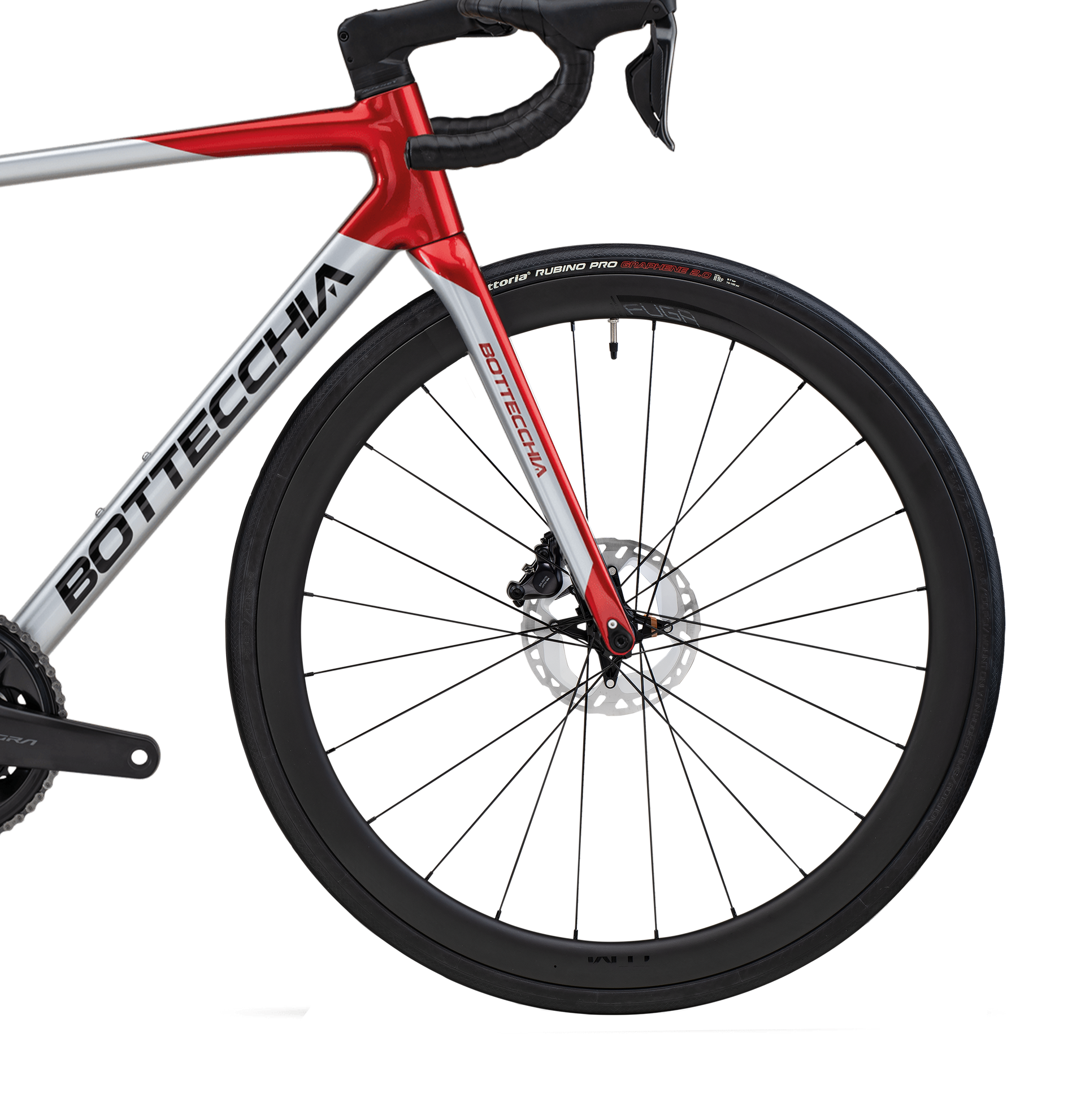

FORK
Monocoque carbon UD tapered steerer 1” 1/2, 390grs of weight.
WEIGHT
Size M raw 985 gr
Setups
59RA 8AVIO ULTIMATE Sram Rival eTap AXS 24s Disk
59TD 8AVIO ULTIMATE Shimano Dura Ace Di2 24s Disk
59RD 8AVIO ULTIMATE Shimano Ultegra Di2 24s Disk
59DD 8AVIO ULTIMATE Shimano 105 Di2 24s Disk
Sizes
46 - 49 - 52 -54- 56 - 58
SETUPS
59RA 8AVIO ULTIMATE Sram Rival eTap AXS 24s DISK
Gear |
8AVIO ULTIMATE Sram Rival Tap AXS 24s DISK |
Rear Derailleur |
Sram Rival Tap AXS 24s |
Shifter |
Sram Rival eTap AXS 24s DISK |
Chainwheel |
Sram Rival AXS eTap 48/35 |
Wheels |
Fulcrum Racing 800 DISK |
Cassette |
Sram Rival 10/30 12s |
Brakes |
Sram Rival eTap AXS DISK 160/160 |
Tires | Vittoria Zaffiro fold 700x25 |
Handlebar |
Deda RHM Zero 2 DCR |
Stem |
Ritchey Comp Switch IRC |
Seatpost |
Ultimate Carbon aero |
Saddle | SAN MARCO Short fit wide open |
Pedals | NO |
59TD 8AVIO ULTIMATE Shimano Dura Ace Di2 24s DISK
Gear |
Shimano Dura Ace Di2 24s DISK |
Rear Derailleur |
Shimano Dura Ace Di2 24s |
Shifter |
Shimano Dura Ace Di2 24s DISK |
Chainwheel |
Shimano Dura Ace 52/36 |
Wheels |
Ursus Carbon TC37 dk TL |
Cassette |
Shimano Dura Ace 11/30 12s |
Brakes |
Shimano 9270 Di2 DISK 140/160 |
Tires |
Vittoria Rubino Pro fold 700x25 |
Handlebar |
Bottecchia ONE Integrated |
Stem |
Bottecchia ONE Integrated |
Seatpost |
Ultimate Carbon aero |
Saddle | SAN MARCO Short fit wide open |
Pedals | NO |
59RD 8AVIO ULTIMATE Shimano Ultegra Di2 24s DISK
Gear |
Shimano Ultegra Di2 24s DISK |
Rear Derailleur |
Shimano Ultegra Di2 24s |
Shifter |
Shimano Ultegra Di2 24s DISK |
Chainwheel |
Shimano Ultegra 50/34 |
Wheels |
Ursus |
Cassette |
Shimano 11/34 12s |
Brakes |
Shimano 8170 Di2 DISK 140/160 |
Tires | Vittoria Zaffiro fold 700x25 |
Handlebar |
Bottecchia ONE Integrated |
Stem |
Bottecchia ONE Integrated |
Seatpost |
Ultimate Carbon aero |
Saddle | SAN MARCO Short fit wide open |
Pedals | NO |

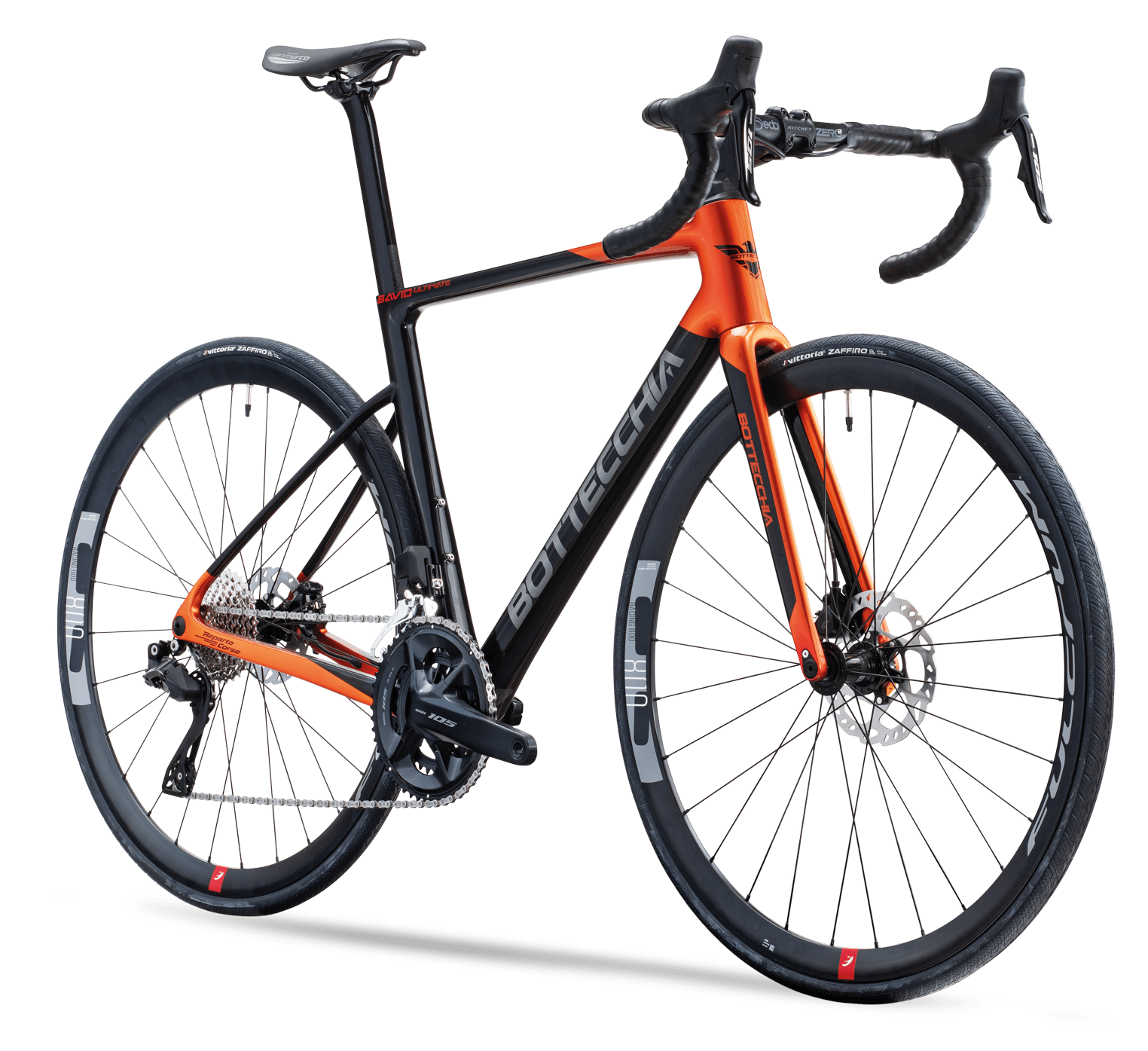

59DD 8AVIO ULTIMATE Shimano 105 Di2 24s DISK
Gear |
Shimano 105 Di2 24s DISK |
Rear Derailleur |
Shimano 105 Di2 24s |
Shifter |
Shimano 105 Di2 24s DISK |
Chainwheel |
Shimano 105 50/34 |
Wheels |
Fulcrum Racing 800 DISK |
Cassette |
Shimano 105 11/36 12s |
Brakes |
Shimano 7170 DISK 140/160 |
Tires | Vittoria Zaffiro fold 700x25 |
Handlebar |
Deda RHM Zero 2 DCR |
Stem |
Ritchey Comp Switch IRC |
Seatpost |
Ultimate Carbon aero |
Saddle | SAN MARCO Short fit wide open |
Pedals | NO |

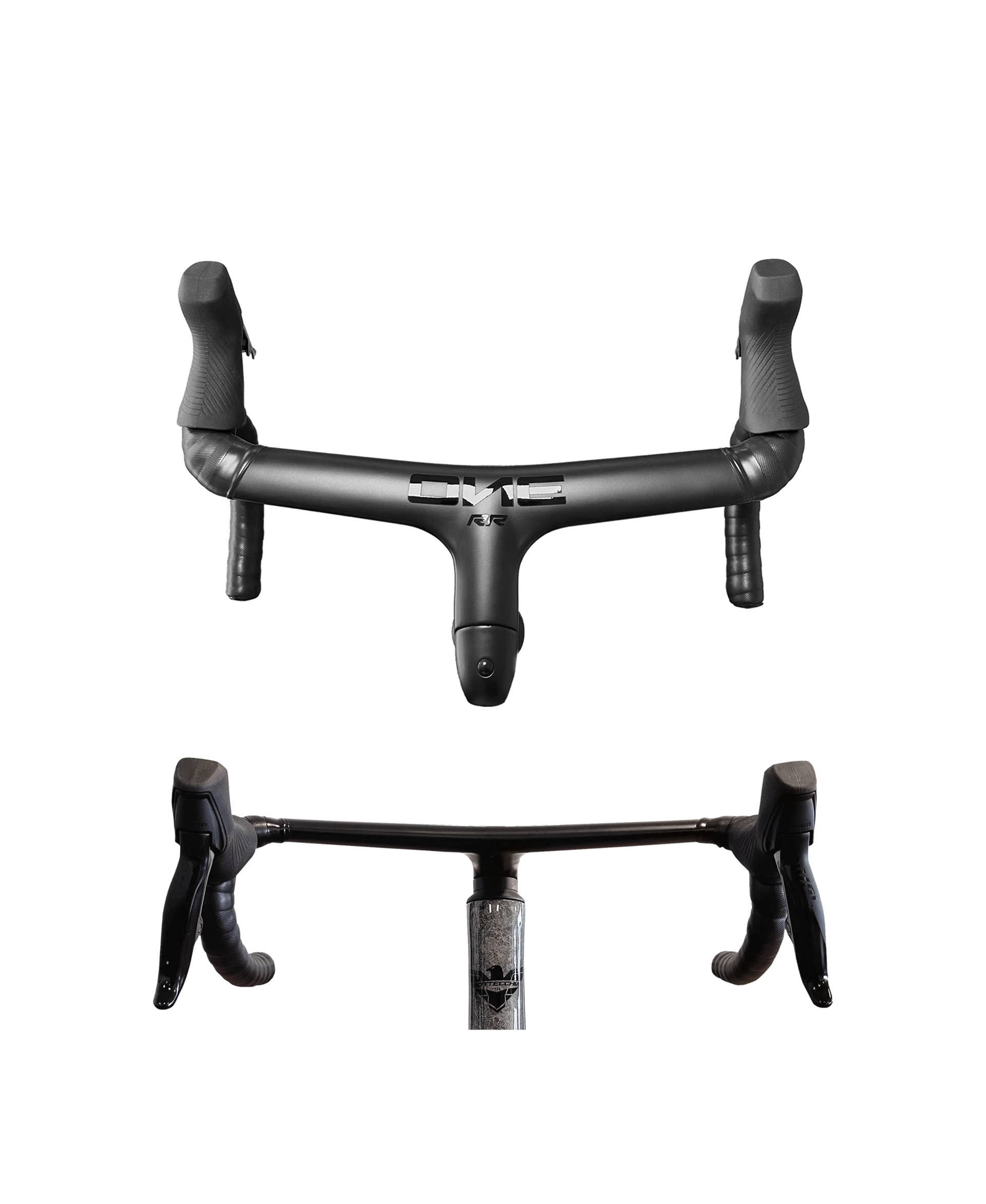

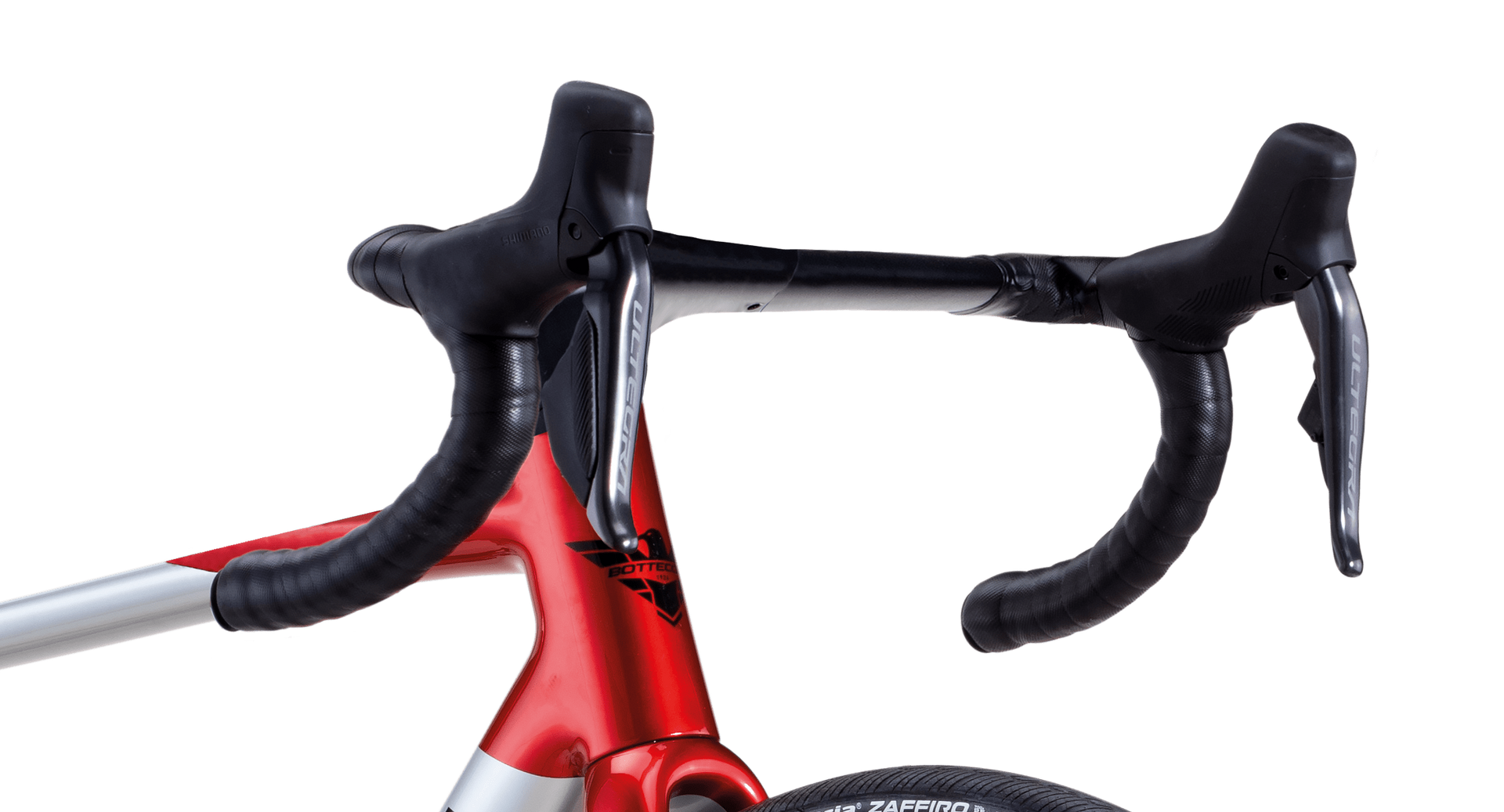

OИE RR FULL CARBON INTEGRATED
The new integrated full carbon OИE RR handlebar, designed for the Pro Road Racing world. The stem and handlebar are integrated into a single structure which guarantees maximum cable integration, with a clear advantage in terms of rigidity, comfort and record-breaking aerodynamics.
HIGH PERFORMANCE GEOMETRY
The lowered chainstays make the frame stiffer but at the same time comfortable, extremely easy to ride.
DOUBLE MOLD MONOCOQUE TECHNOLOGY
Double Mold Monocoque carbon frame, 20% more resistant thanks to DMMT technology, which allows increased resistance without increasing weight.

REPARTO CORSE TECHNOLOGIES
Unidirectional monocoque carbon frame, produced with double mold DMMT (Double Mold Monocoque Technology) technology which makes the frame 20% more resistant, without increasing its weight. Thanks to the parallel arrangement of the carbon fibers it is possible to orient the direction of resistance of the fiber depending on the stress to which the various parts are subjected, without increasing the quantity of carbon required. Aerodynamic efficiency is guaranteed by the fully integrated cable routing thanks to IRC (Internal Routing Cables) technology and by the carbon seatpost with integrated aero-derived collar. To complete the set-up, the new integrated OИE RR full carbon handlebar, perfected for internal cable mounting, and for better rideability.
IDEAL FOR
Designed for long distances, it guarantees easy and safe handling. Perfect for climbs thanks to its reduced weight and its greater rigidity, it is stable and fast even downhill, where it makes the difference thanks to its aerodynamics with internal wiring.
PERFECT FOR YOU IF
8avio Ultimate is the quintessence of road bikes: latest generation technology, refined design, high level performance but an absolutely competitive price.

GUIDA TAGLIE
Se stai cercando la misura della tua nuova bici più adatta a te, clicca qui e consulta la nostra guida alle taglie per avere informazioni sul telaio consigliato per le tue misure.
Per ogni ulteriore informazione non esitare a contattare il tuo rivenditore Bottecchia di zona.
