AQUILA ROSSA EVO

REAPRTO CORSE

Made with the pros, for you.

New frame for AQUILA ROSSA EVO, the hard tail for competitions, designed for the mountain bike athletes. Official bike of the Bottecchia Factory Team, it allows you to face the most treacherous climbs with efficiency, and to conquer the fast descents in total safety. The super light frame is made of high-modulus carbon UD monocoque, extremely responsive and durable, it offers safety and great maneuverability to master even the most challenging tracks. The HPG (High Performace Geometry) is designed for trails with a perfect seat stay angle for the climb, and a head tube inclination designed to increase stability and control even on more technical descents. The review of the rear stay gives to the new AQUILA ROSSA EVO greater reactivity in raising and efficiency on the climb. The suspension fork with 100mm of travel absorbs bumps from the roughness of the terrain, while the 2,25 mm tires increase traction on rough paths. New predisposition for Sram UDH dropout, compatible with all transmission systems, which ensures greater protection of the gearbox and the frame in case of impact and allows a more precise adjustment of the rear derailleur.

AQUILA ROSSA EVO

Name: AQUILA ROSSA EVO
Brand: BOTTECCHIA
Availability: InStock

€0,00

AQUILA ROSSA EVO

€0,00

Select Color

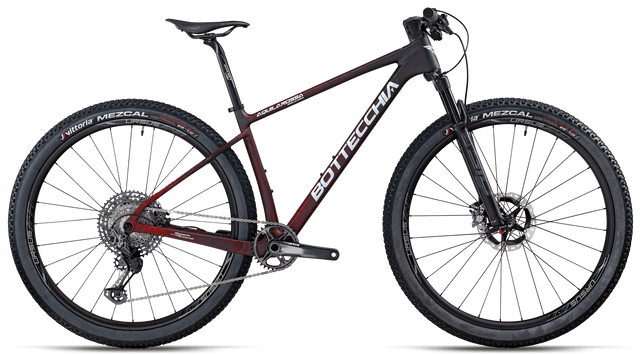

C9 TEAM

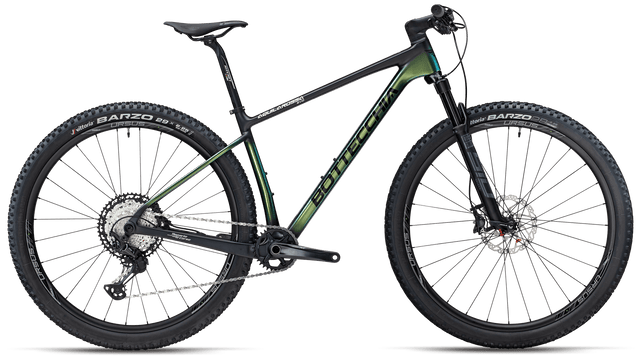

C7 MATT BLACK GREEN GOLD GLOSSY

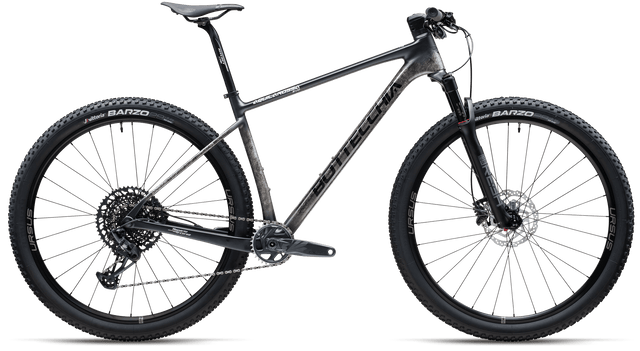

C8 MATT BLACK GLOSSY MARMOR

FRAME
Monocoque carbon double mold tech, HM 29 Superlight with 12mm thru axle BOOST 148mm, suitable for Di2, Head tube internal cable routing. Derailleur hanger UDH, HPG geometry.

BB
Pressfit 92x41

HEADTUBE
Integrated 1” 1/2 up 1” 1/2 down
Integrated cable routing

SURCHARGE
C8 Matt black marmor glossy

WEIGHT
930g size M

Setups

79F AQUILAROSSA EVO Shimano XTR 12s
79Q AQUILAROSSA EVO Shimano XT 12s
79J AQUILAROSSA EVO Shimano Deore 12s
79X AQUILAROSSA EVO Sram GX 12s
79V AQUILAROSSA EVO Sram SX 12s

Sizes

40 - 43 - 47 - 52

SETUP OVERVIEW

GEOMETRIES

SIZE GUIDE

GO TO GUIDE

What is your size?

Consult our SIZE GUIDE to get an indication of the frame size that best suits you. Remember that a biomechanical evaluation with your local authorized dealer is always recommended.

OИE MR FULL CARBON INTEGRATED

La nuova piega OИE MR full carbon integrata, è progettata il mondo MTB Racing. Esclusiva Bottecchia.

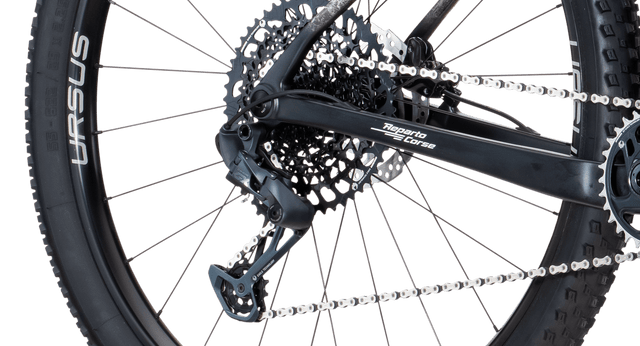

SRAM UDH

Also new is the predisposition for the Sram UDH dropout, compatible with all transmission systems, which ensures greater protection for the derailleur and the frame in the event of an impact and allows for more precise derailleur adjustment.

CARBON UD MONOCOQUE

The super light, high modulus monocoque UD carbon frame, extremely reactive and resistant, offers safety and great maneuverability to better master even the most challenging tracks.

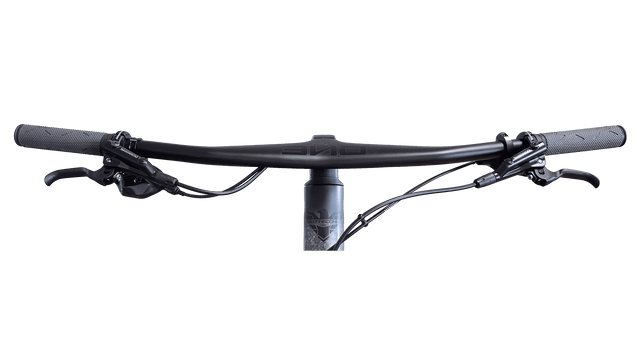

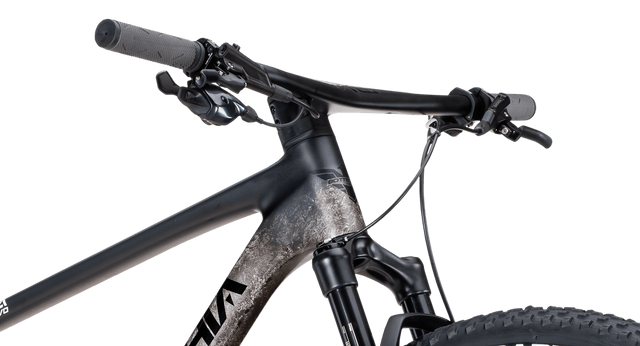

ONE MR FULL CARBON INTEGRATED

The new OИE MR full carbon fold integrated, is designed for the MTB Racing world.

Stem and hadlebar are integrated in a single structure that guarantees maximum cable integration, with an obvious advantage in terms of rigidity, comfort and a record-breaking aerodynamics.

Standard on all versions.

AVAILABLE SIZES: 780 x 70/80

REPARTO CORSE TECHNOLOGIES

Designed to give its all on the racetracks, AQUILA ROSSA is produced with Monolith technology, thanks to which the 930 gram carbon frame takes structure and shape entirely from a single mold in the total absence of juncture points, creating a true monocoque. The homogeneity of the distribution of the carbon fibres benefits the weight, rigidity and distribution of vibrations throughout the structure, bringing performance to the highest levels. This allows you to smooth out the roughness of the trail and make the bike ultra-fast.

IDEAL FOR

Designed for the world of competition this hard tail is perfect for cross country and XCM. Ideal for medium-long distances, it allows you to better tackle mountain paths and routes with challenging gradients.

PERFECT FOR YOU IF

If you are a marathon cross-country rider or simply if you are looking for a light and agile mountain bike that makes no compromises.

PROFESSIONAL BIKE

AQUILA ROSSA EVO is the official bike of the Bottecchia Factory pro team. Click here and discover the version of the AQUILA ROSSA SQUADRA team.
Made with the pros, for you.

SCOPRI I RIVENDITORI

Concept & Design:
Meneghini & Associati - Talent Union

Fork	RS Sid Select 29 RL 100 PL Boost	Rear Shox	-
Gear	Shimano XTR 12s	Rear Derailleur	Shimano XTR 12s
Shifter	Shimano XTR 12s	Chainwheel	Shimano XTR 34t
Wheels	Ursus Diablo Carbon 30 TL	Cassette	Shimano XTR 10/51 12s
Brakes	Shimano XTR 9100 160/180	Tires	Vittoria Mezcal XC 29x2.25 FOLD TL
Handlebar	ONE Carbon fully integrated	Stem	ONE Carbon fully integrated
Seatpost	Ritchey WCS 31.6x400	Saddle	SAN MARCO short fit wide open

Fork	RS Sid Select 29 RL 100 PL Boost	Rear Shox	-
Gear	Shimano XT 12s	Rear Derailleur	Shimano XT 12s
Shifter	Shimano XT 12s	Chainwheel	Shimano XT 32t
Wheels	DRC Shimano MT 410 BOOST	Cassette	Shimano XT 10/51 12s
Brakes	Shimano XT 8100 160/180	Tires	Vittoria Barzo 29x2.25
Handlebar	ONE Carbon fully integrated	Stem	ONE Carbon fully integrated
Seatpost	Ritchey WCS 31.6x400	Saddle	SAN MARCO short fit wide open

Fork	RS Reba 29 RL Boost 100mm	Rear Shox	-
Gear	Shimano Deore 12s	Rear Derailleur	Shimano Deore 12s
Shifter	Shimano Deore 12s	Chainwheel	Shimano FCMT 510 32t
Wheels	Raxe 29 TL30 MT 410 BOOST	Cassette	Shimano Deore 10/51 12s
Brakes	Shimano BR-MT500 160/180	Tires	Vittoria Barzo 29x2.25
Handlebar	ONE Carbon fully integrated	Stem	ONE Carbon fully integrated
Seatpost	Raxe Alu light 31.6x400	Saddle	SAN MARCO short fit wide open

Fork	RS Reba 29 RL Boost 100mm	Rear Shox	-
Gear	Sram GX 12s	Rear Derailleur	Sram GX 12s
Shifter	Sram GX 12s	Chainwheel	Sram GX 32t
Wheels	Ursus Spark 25 xdr	Cassette	Sram GX 10/50 12s
Brakes	Shimano BR-MT500 160/180	Tires	Vittoria Barzo 29x2.25
Handlebar	ONE Carbon fully integrated	Stem	ONE Carbon fully integrated
Seatpost	Ritchey WCS 31.6x400	Saddle	SAN MARCO short fit Carbon wide open

Fork	RS Reba 29 RL Boost 100mm	Rear Shox	-
Gear	Sram SX 12s	Rear Derailleur	Sram SX 12s
Shifter	Sram SX 12s	Chainwheel	Sram SX DUB 32t
Wheels	Raxe 29 TL30 MT 400 BOOST	Cassette	Sram SX 11/50 12s
Brakes	Shimano BR-MT500 160/180	Tires	Vittoria Barzo 29x2.25
Handlebar	ONE Carbon fully integrated	Stem	ONE Carbon fully integrated
Seatpost	Raxe Alu light 31.6x400	Saddle	SAN MARCO short fit wide open

AQUILA ROSSA EVO

Made with the pros, for you.

AQUILA ROSSA EVO

SIZE GUIDE

What is your size?

OИE MR FULL CARBON INTEGRATED

SRAM UDH

CARBON UD MONOCOQUE

ONE MR FULL CARBON INTEGRATED

REPARTO CORSE TECHNOLOGIES

IDEAL FOR

PERFECT FOR YOU IF

PROFESSIONAL BIKE

Follow your instinct

Bottecchia Cicli srl

Quick links

Follow us

SIZE	A	B1	C	E	F	S	STACK	REACH
40	400	579	74°	68.5°	435	95	405	608
43	430	604	74°	68.5°	435	100	429	610
47	470	625	74°	68.5°	435	110	450	622
49	520	650	74 °	68.5°	435	125	471	636
