DUELLO

REPARTO CORSE

DUELLO

Name: DUELLO
Brand: BOTTECCHIA
Availability: InStock

€0,00

DUELLO

€0,00

Select Color

77 MATT RED

31 ANTHRACITE

FRAME
Alu 6061 double butted, suitable both for caliper with quick release and disk brakes, with thru axle. Internal cable routing. Carbon look finish.

BB
BSA 68mm.

HEADTUBE
Integrated 1” 1/2 up and 1” 1/2 down
Integrated cable routing

FORK
Carbon with 1”1/2 alu tapered stem. Weight 570grs.
QR version for rim brake and thru axle for disk brake version.

WEIGHT
Size M raw 1780g

Setups

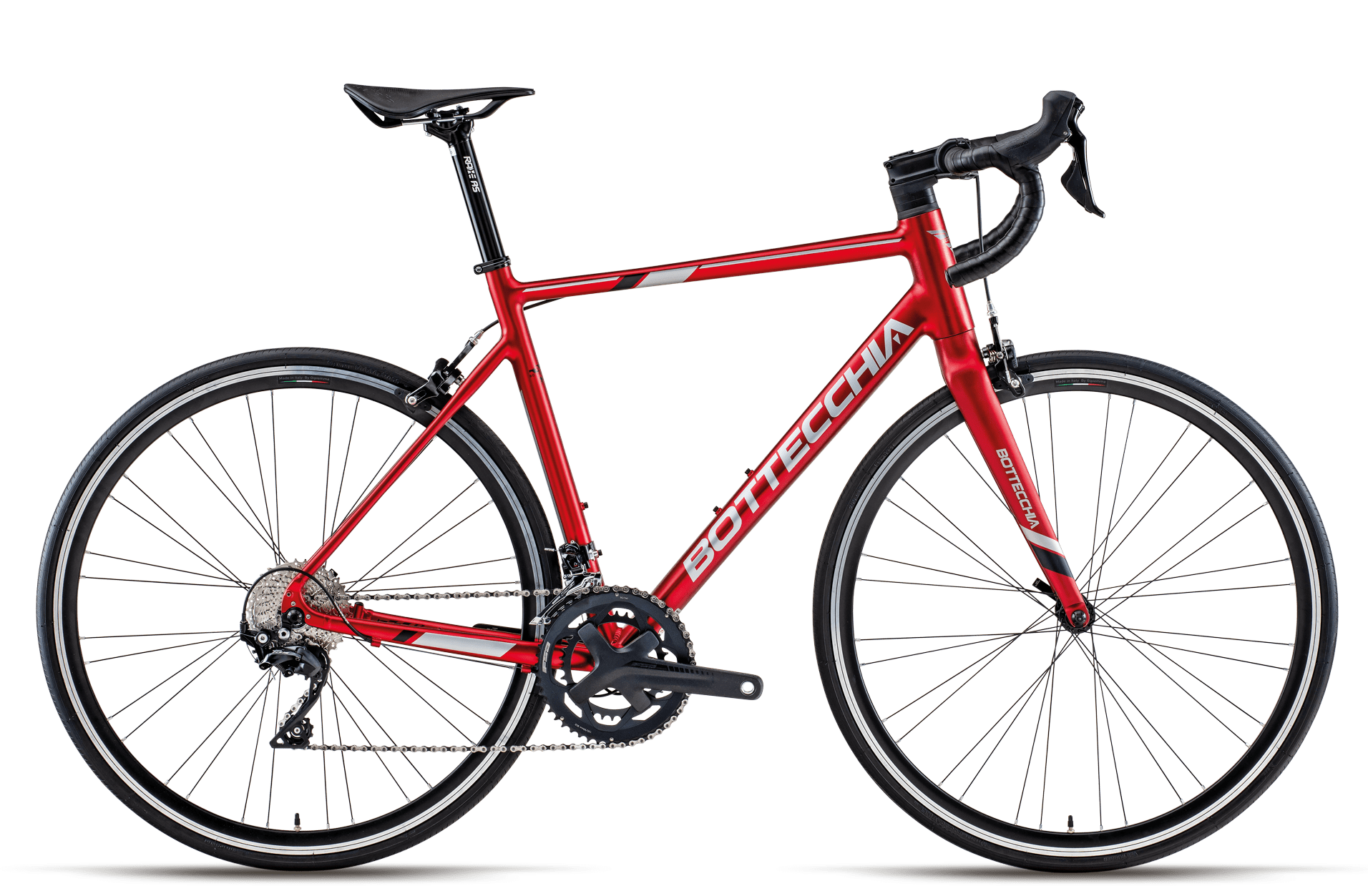

54N DUELLO Shimano 105 Mix 22s
54B DUELLO Campagnolo Veloce Mix 20s
54K DUELLO Shimano Claris Mix 16s

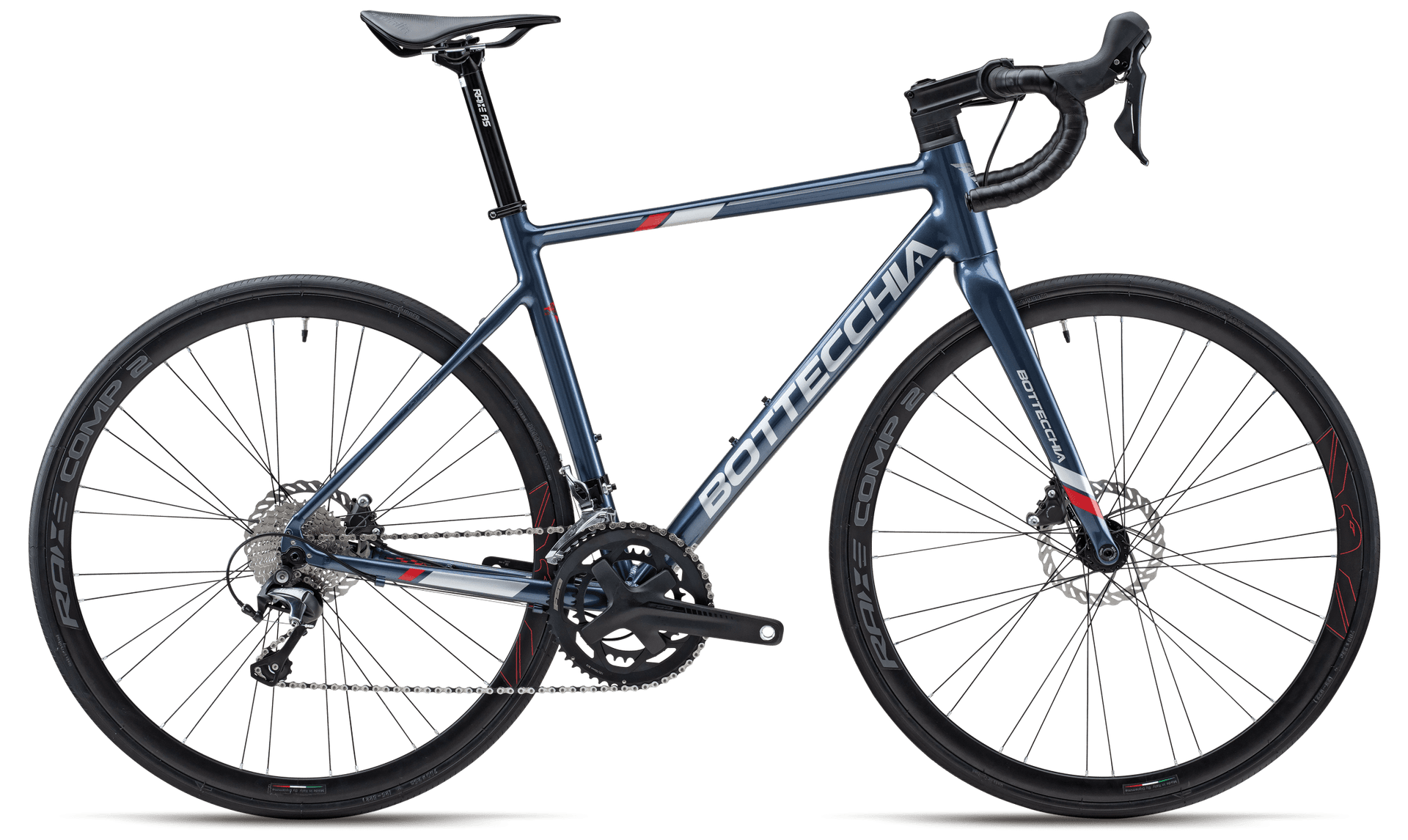

53J DUELLO Shimano Tiagra Mix 20s DISK

Sizes

44 - 48 - 51 - 54 - 57 - 60

SETUP OVERVIEW

GEOMETRIES

SIZE GUIDE

GO TO THE GUIDE

What is your size?

Consult our SIZE GUIDE to get an indication of the frame size that best suits you. Remember that a biomechanical evaluation with your local authorized dealer is always recommended.

NEW INTEGRATED STEERING

New 1" and ½ integrated headset which increases rigidity and, thanks to IRC technology, allows all the cables to be routed inside the frame, leaving a cleaner and more aerodynamic design.

CARBON FINISH LOOK

The smooth welding on the entire frame gives a carbon finish look with a strong aesthetic impact.

REPARTO CORSE TECHNOLOGIES

New double butted 6061 aluminum frame compatible for the assembly of disc, thru axle, caliper, or quick release brakes. Thanks to the design of the Reparto Corse, we have developed increasingly cutting-edge solutions to get the most out of this material, with high quality levels, greater lightness and high performance. The light and comfortable frame is characterized by a 610 gram carbon fork that dampens the roughness of the road, and is assembled with quality components to guarantee excellent performance on the road.

IDEAL FOR

Excellent performance on any route, from longer circuits to group rides and even on less demanding gravel trails.

PERFECT FOR YOU IF

Designed for those looking for a smooth, stable and fun racing bike. Also ideal for those approaching the road world and need comfort and reliability.

SCOPRI I RIVENDITORI

Concept & Design:
Meneghini & Associati - Talent Union

Gear	Shimano 105 Mix 22s	Rear Derailleur	Shimano 105 22s
Shifter	Shimano 105 22s	Chainwheel	FSA Omega Megaexo Alu 34/50
Wheels	RAXE X-AIR QR	Cassette	Shimano 105 11/34 11s
Brakes	Raxe Caliper R340	Tires	VRB 055 700x25 black
Handlebar	Deda RHM Zero	Stem	Raxe Alu Light IRC
Seatpost	Raxe Alu 31.6	Saddle	Bottecchia Eagle Flow
Pedals	NO

Gear	Campagnolo Veloce Mix 20s	Rear Derailleur	Campagnolo Veloce 20s
Shifter	Campagnolo Veloce 20s	Chainwheel	FSA Omega Megaexo Alu 34/50
Wheels	Bottecchia Racing X-AIR QR Campagnolo	Cassette	Campagnolo Veloce 13/29 10s
Brakes	Raxe Caliper R340	Tires	VRB 055 700x25 black
Handlebar	Deda RHM Zero	Stem	Raxe Alu Light IRC
Seatpost	Raxe Alu 31.6	Saddle	Bottecchia Eagle Flow
Pedals	NO

Gear	Shimano Claris Mix 16s	Rear Derailleur	Shimano Claris 16s
Shifter	Shimano Claris 16s	Chainwheel	FSA Omega Megaexo Alu 34/50
Wheels	Bottecchia Racing X-AIR QR Shimano	Cassette	Shimano 11/34 8s
Brakes	Raxe Caliper R340	Tires	VRB 055 700x25 black
Handlebar	Deda RHM Zero	Stem	Raxe Alu Light IRC
Seatpost	Raxe Alu 31.6	Saddle	Bottecchia Eagle Flow
Pedals	NO

Gear	Shimano Tiagra Mix 20s DISK	Rear Derailleur	Shimano Tiagra 20s
Shifter	Shimano Tiagra 20s DISK	Chainwheel	FSA Omega Megaexo Alu 34/50
Wheels	Raxe Comp-2 Thrue axle DISK	Cassette	Shimano Tiagra 11/32 10s
Brakes	Shimano 4770 DISK 140/160	Tires	VRB 055 700x25 black
Handlebar	Deda RHM Zero	Stem	Raxe Alu Light IRC
Seatpost	Raxe Alu 31.6	Saddle	Bottecchia Eagle Flow
Pedals	NO

SIZE	A	B1	C	E	F	S	STACK	REACH
44	440	515	74.5°	71st	410	120	534	366
48	480	530	74°	72°	410	120	537	376
51	510	551	73.5°	73°	410	140	560	385
54	540	565	73°	73.5°	410	160	581	387
57	570	580	72.5°	73.5°	410	180	600	391
60	600	600	72 °	74th _	410	180	602	403
