GRAVEL MONSTER

REPARTO CORSE

Your new adventure bike

GRAVEL MONSTER is the fast bike on asphalt, but not afraid of dirt roads. Ready for adventure, it's ideal for excursions, bike packing and nature trips.

GRAVEL MONSTER

Name: GRAVEL MONSTER
Brand: BOTTECCHIA
Availability: InStock

€0,00

GRAVEL MONSTER

€0,00

Select Color

06 MATT GREEN

86 MATT ANTHRACITE

FRAME
Gravel Alu 6061 Double Butted, disk brakes, Thrue axle. Carbon look finish. Internal cable routing integrated.

BB
BSA 68mm.

HEADTUBE
Integrated 1” 1/2 up and 1” 1/2 down. Integrated cable routing.

FORK
Monocoque carbon tapered steerer 1” 1/2, weight 510g. Thru axle 12mm.

WEIGHT
Size M 1460g

Setups

48BS GRAVEL MONSTER Shimano GRX600 22s DISK
48BR GRAVEL MONSTER Shimano GRX400 Mix 20s DISK
48AM GRAVEL MONSTER Sram Apex Mix 11s DISK
48U GRAVEL MONSTER Shimano Sora Mix 18s DISK

Sizes

44 - 48 - 51 - 54 - 58

SETUP OVERVIEW

GEOMETRIES

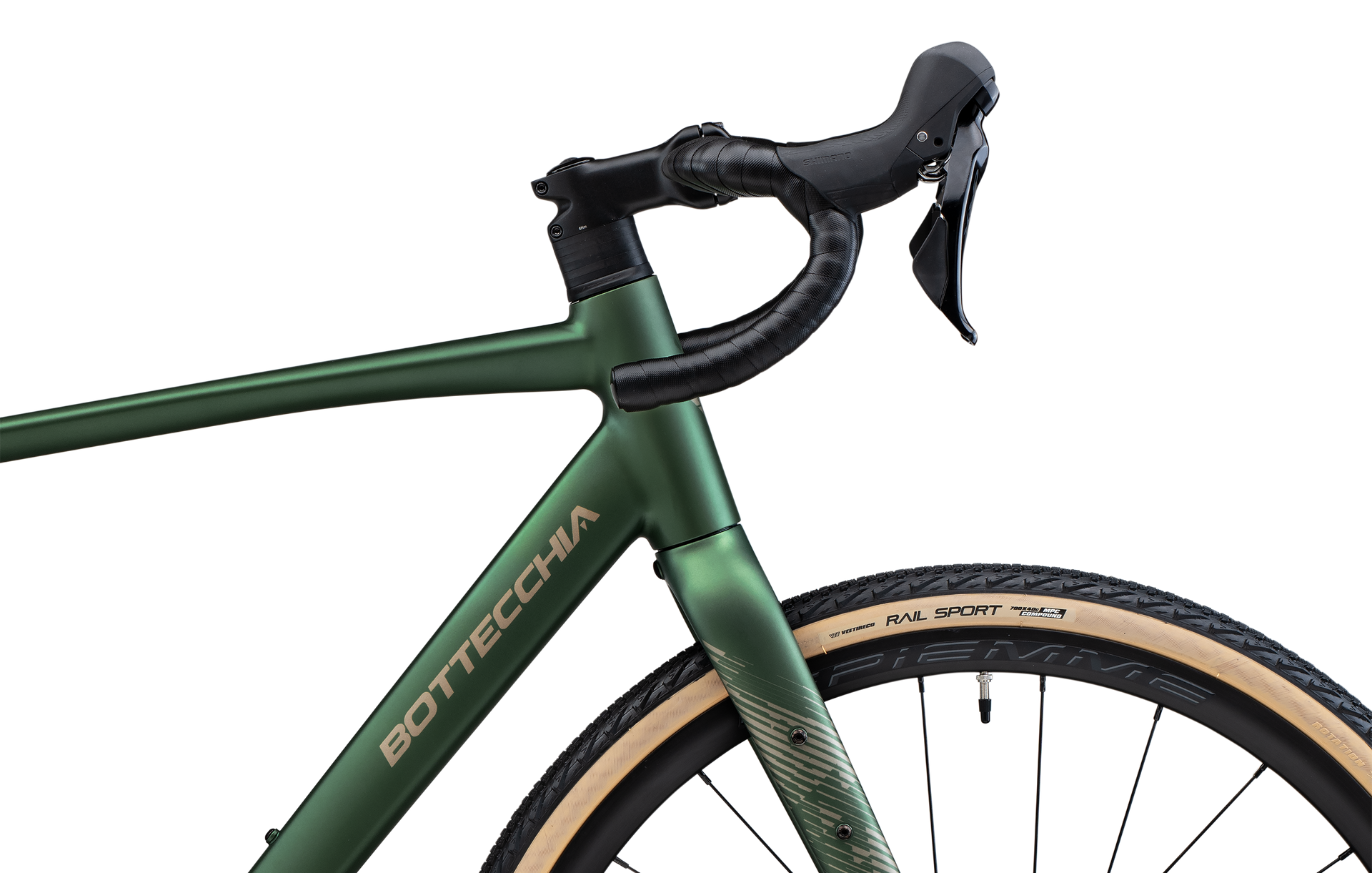

NEW INTEGRATED HEADTUBE

The new 1" and 1/2 integrated headset makes the frame more rigid and allows internal cable routing for better rideability.

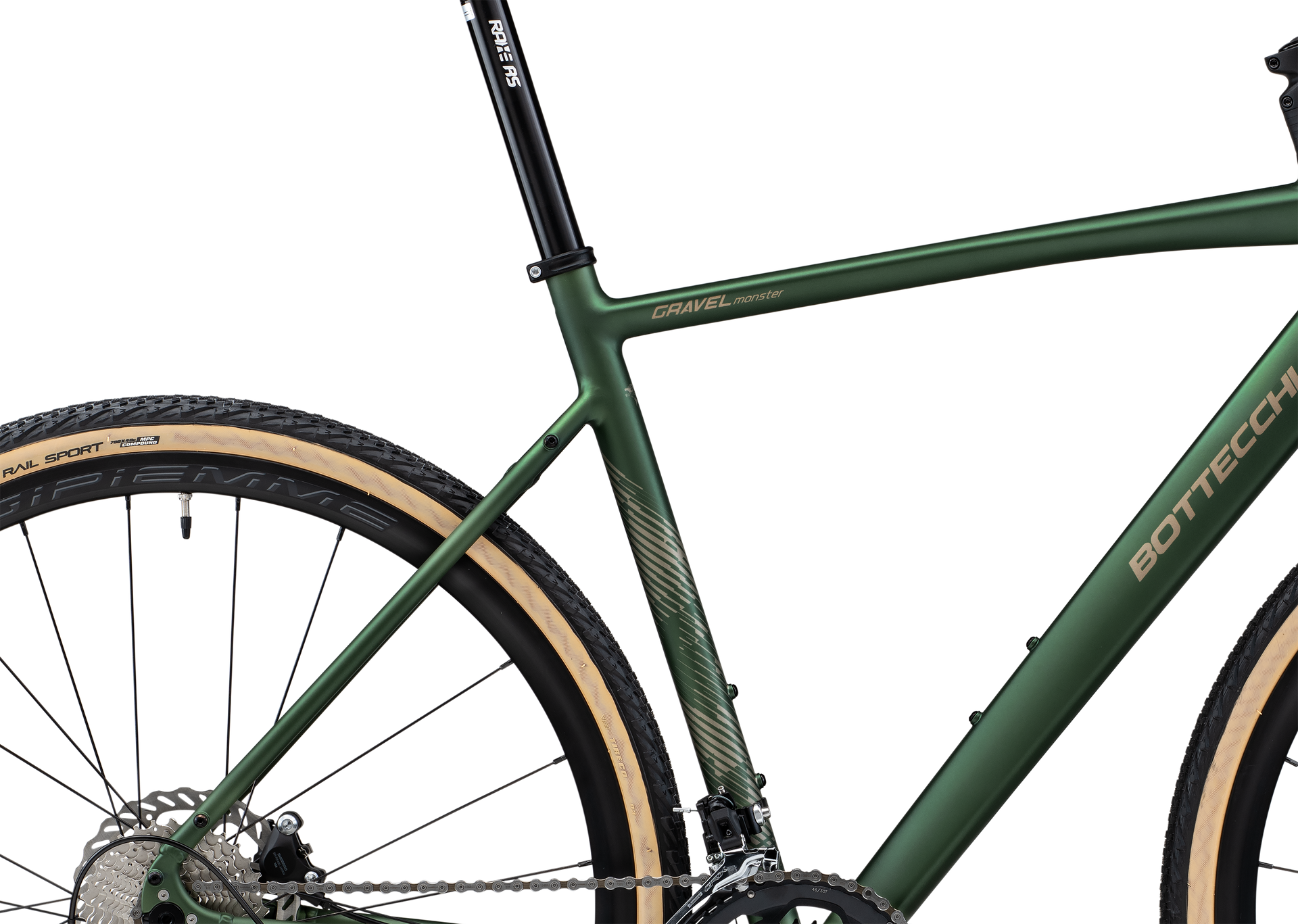

CARBON FINISH LOOK

The smooth welding on the entire frame gives a carbon finish look with a strong aesthetic impact.

REPARTO CORSE TECHNOLOGIES

Double butted 6061 aluminum for the Gravel Monster, the perfect bike for having fun on different trails. Possibility of equipping the higher versions with a monocoque carbon fork with a 510g 1" ½ tapered steerer capable of absorbing vibrations, and front and rear thru axles which give greater rigidity to the frame. Available with both Sram Apex and Shimano GRX400 and GRX600 20 and 22 speed groupsets with optimized ratios.

IDEAL FOR

Designed to tackle any terrain in any season, without worrying about distances. Thanks to the superior quality components it guarantees excellent performance both in group rides and in races.

PERFECT FOR YOU IF

If you are looking for a reliable aluminum gravel bike with excellent handling capable of tackling rough roads with great riding comfort even on long journeys.

SIZE GUIDE

If you are looking for the size of your new bike that is best for you, click here and consult our size guide for information on the recommended frame for your measurements.
For any further information, do not hesitate to contact your local Bottecchia retailer.

FIND YOUR SIZE

DISCOVER THE RETAILERS

Concept & Design:
Meneghini & Associati - Talent Union

Gear	Shimano GRX600 22s DISK	Rear Derailleur	Shimano RX600 22s
Shifter	Shimano RX600 22s DISK	Chainwheel	Shimano RX600 30/46
Wheels	Raxe Comp-2 Thrue Axle Disk	Cassette	Shimano GRX 11/34 11s
Brakes	Shimano RX400 DISK 160/160	Tires	VRB Gravel 700x40 black para
Handlebar	Raxe Gravel Alu HB	Stem	Raxe Gravel Alu ICR
Seatpost	Raxe Alu 27.2	Saddle	Selle ITALIA X Model
Pedals	NO

Gear	Shimano GRX400 Mix 20s DISK	Rear Derailleur	Shimano RX400 20s
Shifter	Shimano RX400 20s DISK	Chainwheel	FSA Omega Megaexo Alu 30/46
Wheels	Raxe Comp-2 Thrue axle DISK	Cassette	Shimano GRX 11/34 10s
Brakes	Shimano RX400 DISK 160/160	Tires	VRB Gravel 700x40 black para
Handlebar	Raxe Gravel Alu HB	Stem	Raxe Gravel Alu ICR
Seatpost	Raxe Alu 31.6	Saddle	Selle ITALIA X Model
Pedals	NO

Gear	Sram Apex Mix 11s DISK	Rear Derailleur	Sram Apex 11s
Shifter	Sram Apex 11s DISK	Chainwheel	FSA Omega Megaexo Alu 42t
Wheels	Raxe Comp-2 Thrue axle DISK	Cassette	Sram Apex 11/42 11s
Brakes	Sram Apex Disk 160/160	Tires	VRB Gravel 700x40 black para
Handlebar	Raxe Gravel Alu HB	Stem	Raxe Gravel Alu ICR
Seatpost	Raxe Alu 31.6	Saddle	SELLE ITALIA
Pedals	NO

Gear	Shimano Sora Mix 18s DISK	Rear Derailleur	Shimano Sora 18s
Shifter	Shimano Sora 18s DISK	Chainwheel	FSA Omega Megaexo Alu 30/46
Wheels	Raxe Comp-2 Thrue axle DISK	Cassette	Shimano Sora 11/34 9s
Brakes	Shimano BR317 DISK 140/160	Tires	VRB Gravel 700x40 black para
Handlebar	Raxe Gravel Alu HB	Stem	Raxe Gravel Alu ICR
Seatpost	Raxe Alu 31.6	Saddle	SELLE ITALIA
Pedals	NO

SIZE	A	B1	C	E	F	S	STACK	REACH
44	440	505	74.5°	70°	432	110	527	360
48	480	515	74.5°	70.5°	432	120	539	366
51	510	530	74°	71st	432	140	560	370
54	540	550	73.5°	71.5°	432	160	580	377
58	580	580	72.5°	71.5°	432	190	600	400
