GRAVEL TITAN

NEW COLLECTION

Elegant. Unstoppable. Eternal.

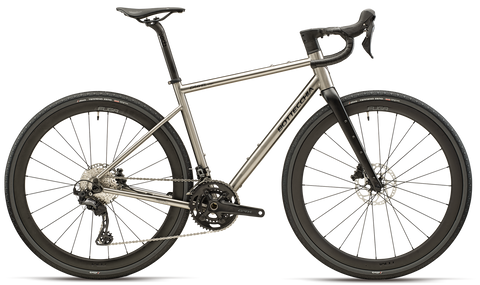

Designed for those who don't want to compromise on performance and durability, the new GRAVEL TITAN is the ultimate travel companion on both road and dirt. A brushed titanium frame that combines elegance, strength, and lightness, it's designed to last and effortlessly tackle long distances on mixed terrain with maximum comfort.

GRAVEL TITAN

Name: GRAVEL TITAN
Brand: BOTTECCHIA

€0,00

GRAVEL TITAN

Sold Out

€0,00

Select Color

72 TITANIUM

FRAME
Grade 9 brushed titanium, TIG welds, differentiated tube cross-section, internal cable routing. Bike packing ready. Wheel clearance up to 50 mm.

BB SET
T47

HEADTUBE
Integrated 1” 1/2 above and 1” 1/2 below.

FORK
Superlight monocoque carbon, 1”1/2 tapered steerer, 12mm thru axle, weight 450g.

WEIGHT Size M raw 1670g.

Setups

52BZ GRAVEL TITAN Shimano GRX 825 Di2 24S
52BX GRAVEL TITAN Shimano GRX 610 24s
52BE GRAVEL TITAN Shimano GRX 610 12s
52RE GRAVEL TITAN Sram RED AXS XPLR 13s
52RP GRAVEL TITAN Sram Rival AXS XPLR 13s

Sizes

45 - 49 - 52 - 54 - 56

GEOMETRIES

TOTAL INTEGRATION

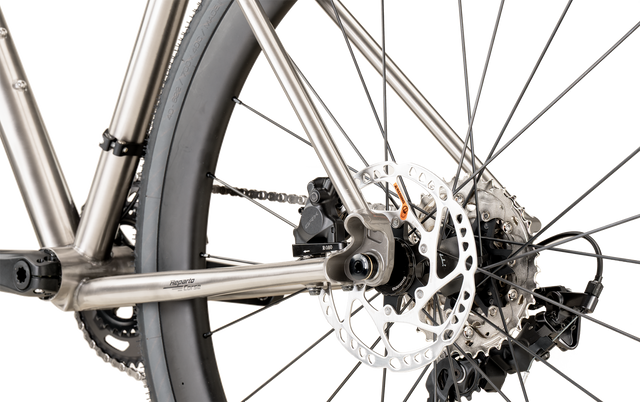

Internal cable routing maintains clean lines and protects the system from dust, mud and the elements.

READY FOR ADVENTURE

Bikepacking compatibility makes the GRAVEL TITAN the perfect companion for long rides, travel, and open-ended adventures. Generous tire clearance allows for tires up to 50 mm, allowing you to confidently tackle even the most technical trails.

MAXIMUM STABILITY

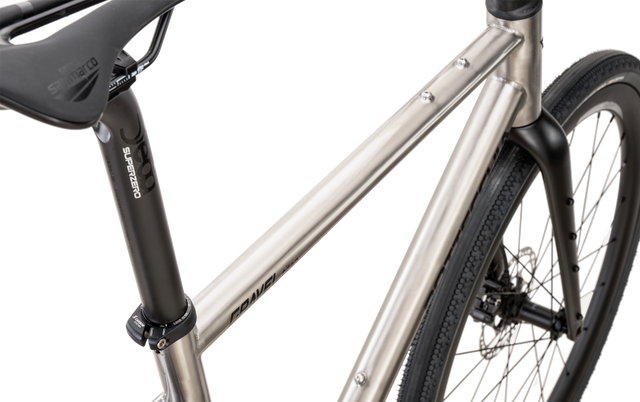

The differentiated cross-section tubes reduce vibration transmission, improving comfort in the saddle even after many hours. Greater torsional rigidity and reliability on the most demanding routes.

LIFETIME WARRANTY

A titanium frame is not just a technical choice: it is a promise that lasts forever. For this reason, each of our titanium gravel bikes is covered by a lifetime warranty. Because we believe in the value of time, in the changing streets but also in what remains immutable: your desire for freedom, and a frame that will never abandon you.

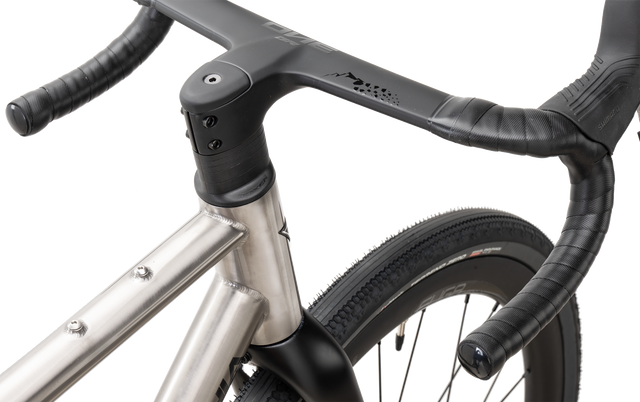

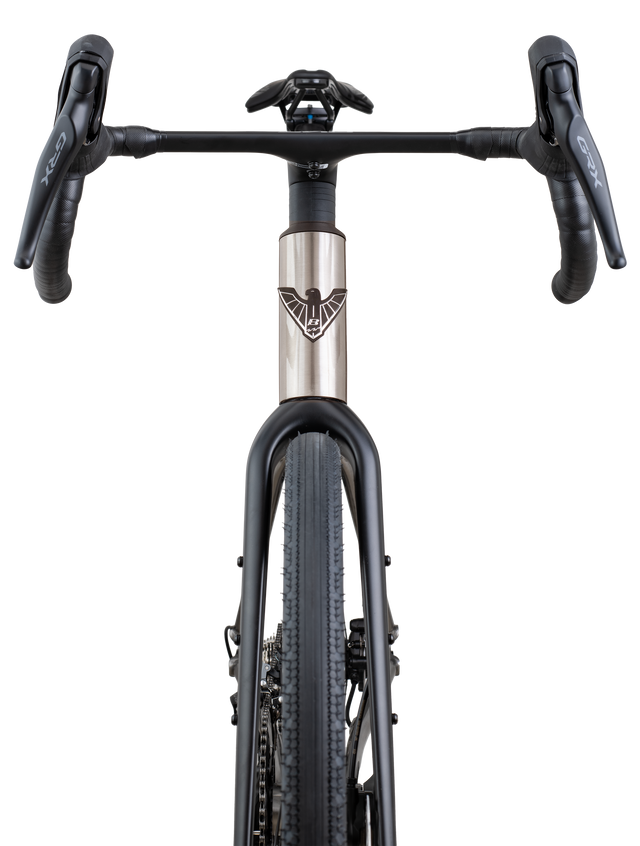

ONE GR FULL CARBON INTEGRATED

La piega OИE GR full carbon integrata, è progettata per il mondo Gravel Racing. Pensata per la totale integrazione dei cavi, migliora le performance in termini di rigidezza e aerodinamica e assicura un comfort elevato grazie all’apertura ottimizzata per terreni sconnessi.

Info tecniche

PESO 390 grammi
FLARE 12°
MISURE 38x80, 40x90, 42x100, 44x110

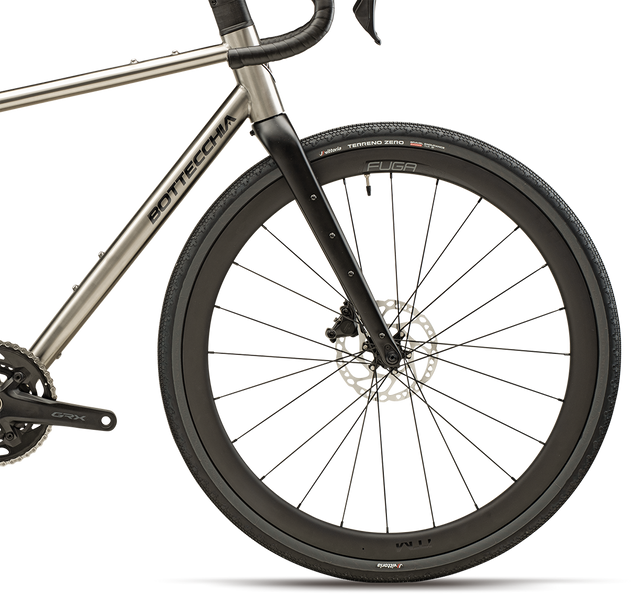

Scopri le nuove ruote ITM

Scopri di più sulle ruote ITM sviluppate in esclusiva per Bottecchia.

SCOPRI DI PIU'

RACING TECHNOLOGIES DEPARTMENT

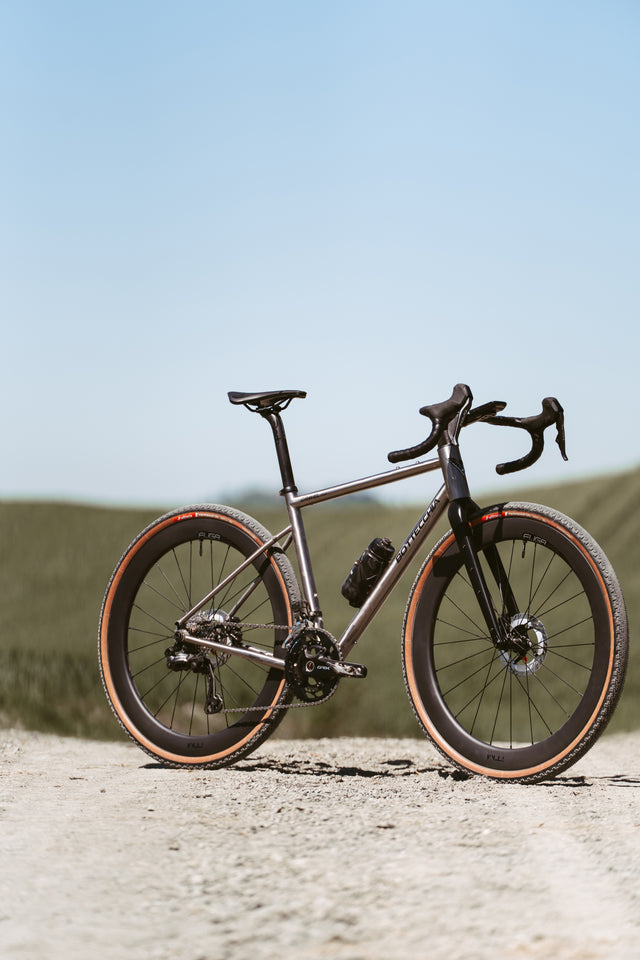

Designed for modern explorers and built to last, the GRAVEL TITAN is the new frontier of two-wheeled adventure. A brushed titanium frame with elegant yet functional lines, constructed with differentiated tubing to ensure rigidity where needed and comfort on any terrain. Internal cable routing maintains clean lines and protects the system from dust, mud, and the elements. Bikepacking-ready makes the GRAVEL TITAN the perfect companion for long rides, travel, and open-ended adventures. Generous tire clearance allows for tires up to 50 mm, allowing you to confidently tackle even the most technical trails.

IDEAL FOR

Whether you're tackling endless dirt roads, challenging climbs, or technical singletrack, the GRAVEL TITAN offers the perfect combination of responsiveness, comfort, and reliability. Every detail is designed to ensure high performance and a smooth ride, even after hundreds of kilometers.

PERFECT FOR YOU IF

If you want a durable, high-performance bike to take you anywhere, on any type of route.

SCOPRI I RIVENDITORI

Concept & Design:
Meneghini & Associati - Talent Union

Gear	Sram RED AXS XPLR 13s	Rear Derailleur	Sram RED AXS XPLR 13s
Shifter	Sram RED AXS XPLR 13s	Chainwheel	Sram RED AXS XPLR 1x46
Wheels	ITM VOLATA 40/55	Cassette	Sram RED AXS XPLR 10/46 13s
Brakes	Sram RED AXS XPLR 160/160	Tires	Vittoria Terreno T fold 700x40 TNT
Handlebar	OИE GR Full Carbon Integrated	Stem	OИE GR Full Carbon Integrated
Seatpost	Deda RS 12mm	Saddle	SAN MARCO short fit wide open carbon
Pedals	NO

Gear	Sram RIVAL AXS XPLR 13s	Rear Derailleur	Sram RIVAL AXS XPLR 13s
Shifter	Sram RIVAL AXS XPLR 13s	Chainwheel	Sram RIVAL AXS XPLR 1x42
Wheels	ITM FUGA 40/55/ Ursus TC37	Cassette	Sram RIVAL AXS XPLR 10/46 13s
Brakes	Sram RIVAL AXS XPLR 160/160	Tires	Vittoria Terreno T fold 700x40 TNT
Handlebar	OИE GR Full Carbon Integrated	Stem	OИE GR Full Carbon Integrated
Seatpost	Deda RS 12mm	Saddle	SAN MARCO short fit wide open
Pedals	NO

Gear	Shimano GRX 825 Di2 24s	Rear Derailleur	Shimano GRX 825 Di2 24s
Shifter	Shimano GRX 825 Di2 24s	Chainwheel	Shimano GRX 825 Di2 24s 48/31
Wheels	ITM FUGA 40/55/ Ursus TC37	Cassette	Shimano GRX 825 11/36 12s
Brakes	Shimano GRX 825 Di2 Disk 160/160	Tires	Vittoria Terreno T fold 700x40 TNT
Handlebar	ONE GR Full Carbon Integrated	Stem	ONE GR Full Carbon Integrated
Seatpost	Deda RS 12mm	Saddle	SAN MARCO short fit wide open
Pedals	NO

Gear	Shimano GRX610 12s	Rear Derailleur	Shimano GRX610 12s
Shifter	Shimano GRX610 12s	Chainwheel	Shimano GRX610-1 40th
Wheels	ITM FUGA 40/55/ Ursus TC37	Cassette	Shimano GRX 10/51 12s
Brakes	Shimano RX410 DISK 160/160	Tires	Vittoria Terreno T fold 700x40 TNT
Handlebar	ONE GR Full Carbon Integrated	Stem	ONE GR Full Carbon Integrated
Seatpost	Deda RS 12mm	Saddle	SAN MARCO short fit wide open
Pedals	NO

Gear	Shimano GRX610 24s	Rear Derailleur	Shimano GRX610 24s
Shifter	Shimano GRX610 24s	Chainwheel	Shimano GRX610 24S 30/46
Wheels	ITM FUGA 40/55/ Ursus TC37	Cassette	Shimano GRX 11/36 12s
Brakes	Shimano RX410 DISK 160/160	Tires	Vittoria Terreno T fold 700x40 TNT
Handlebar	ONE GR Full Carbon Integrated	Stem	ONE GR Full Carbon Integrated
Seatpost	Deda RS 12mm	Saddle	SAN MARCO short fit wide open
Pedals	NO
